Brennan 6502-16-16-FG

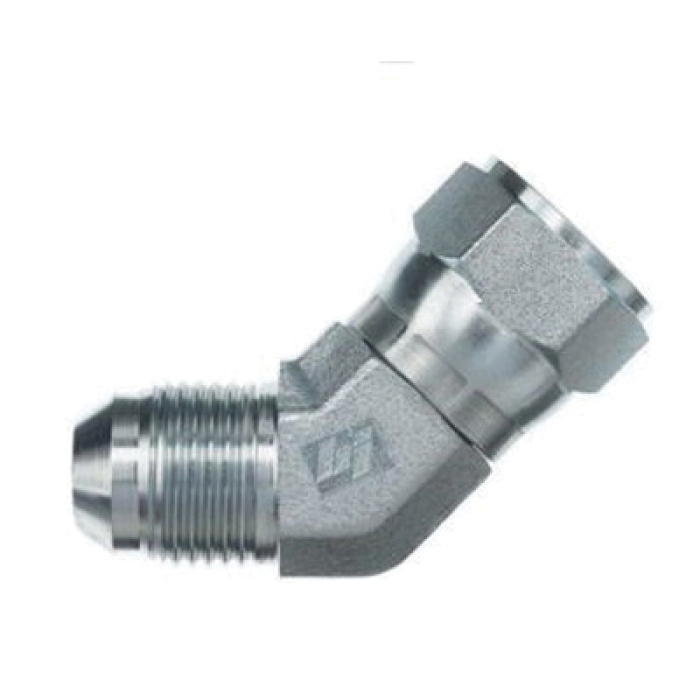

Brennan 6502 Forged Steel 45 deg Elbow, 1 in Male SAE 37 deg JIC x 1 in Female SAE 37 deg JIC Swivel

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA 6502-16-16-FG
  • MPN: 6502-16-16-FG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan 45 deg Elbow, Series: 6502, Connection Type 1: SAE 37 deg JIC, Gender 1: Male, Connection Size 1: 1 in, Thread Size 1: 1-5/16-12, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1 in, Thread Size 2: 1-5/16-12, Hex Size: 1-1/2 in, 3600 psi, Forged Steel, Dimension Standards: MS 51522, SAE 070321

California residents see Prop 65 WARNINGS

Series      :      6502
Connection Size 1      :      1 in
Connection Size 2      :      1 in
Gender 1      :      Male
Gender 2      :      Female
Connection 1      :      1 in JIC
Shape      :      45 deg Elbow
Connection 2      :      1 in JIC Swivel
Thread Size 1      :      1-5/16-12
Thread Size 2      :      1-5/16-12
Dimension Standards      :      MS 51522, SAE 070321
Fitting Type      :      45 deg Elbow
Hex Size      :      1-1/2 in
Material      :      Forged Steel
Pressure Rating      :      3600 psi
Connection Type 1      :      SAE 37 deg JIC
Connection Type 2      :      SAE 37 deg JIC Swivel

Standards/Certifications: Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov
