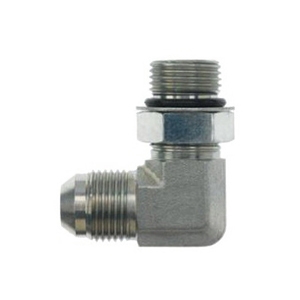

Brennan 6801-NWO-FG Forged Steel 90 deg Elbow, Connection Size 1: 1/4 in, Gender 1: Male, Connection Type 1: O-Ring Boss x Connection Size 2: 3/8 in, Gender 2: Male, Connection Type 2: JIC, 6000 psi
| Series | : | 6801-NWO-FG |
| Connection Size 1 | : | 1/4 in |
| Connection Size 2 | : | 3/8 in |
| Gender 1 | : | Male |
| Gender 2 | : | Male |
| Connection 1 | : | 1/4 in ORB |
| Shape | : | 90° Elbow |
| Connection 2 | : | 3/8 in JIC |
| Thread Size 1 | : | 7/16-20 |
| Thread Size 2 | : | 9/16-18 |
| Dimension Standards | : | SAE 070220, MS 51527 |
| Fitting Type | : | 90 deg Elbow |
| Hex Size | : | 0.563 in |
| Material | : | Forged Steel |
| Pressure Rating | : | 6000 psi |
| Connection Type 1 | : | O-Ring Boss |
| Connection Type 2 | : | JIC |
