Brennan 6801-04-03-NWO-FG
Send Print
  1. pin-int

Brennan 6801-04-03-NWO-FG

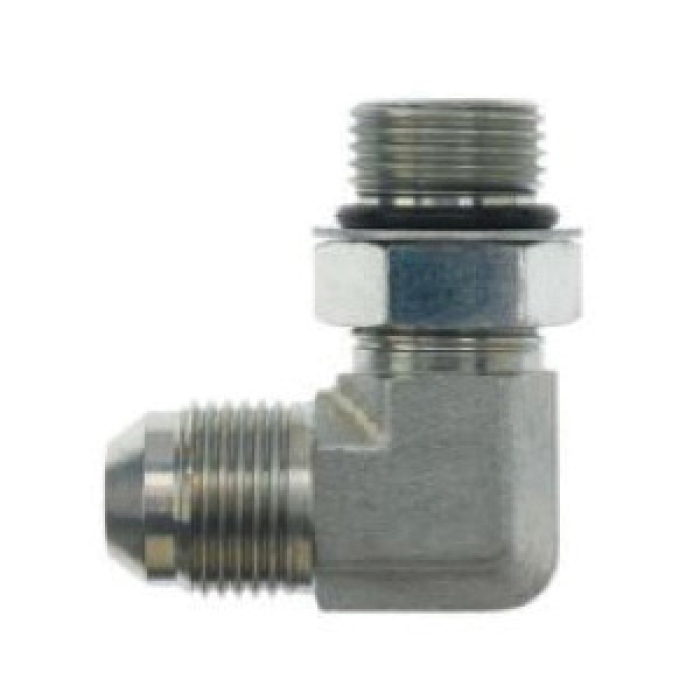

Brennan 6801-NWO-FG Forged Steel 90 deg Elbow, 3/16 in Male SAE ORB x 1/4 in Male SAE 37 deg JIC

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA 6801-04-03-NWO
  • MPN: 6801-04-03-NWO-FG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan 90 deg Elbow, Series: 6801-NWO-FG, Connection Type 1: SAE ORB, Gender 1: Male, Connection Size 1: 3/16 in, Thread Size 1: 3/8-24, Connection Type 2: SAE 37 deg JIC, Gender 2: Male, Connection Size 2: 1/4 in, Thread Size 2: 7/16-20, Hex Size: 1/2 in, 5000 psi, Forged Steel

California residents see Prop 65 WARNINGS

Series      :      6801-NWO-FG
Connection Size 1      :      3/16 in
Connection Size 2      :      1/4 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      3/16 in ORB
Shape      :      90 deg Elbow
Connection 2      :      1/4 in JIC
Thread Size 1      :      3/8-24
Thread Size 2      :      7/16-20
Dimension Standards      :      MS 51527, SAE 070220
Fitting Type      :      90 deg Elbow
Hex Size      :      1/2 in
Material      :      Forged Steel
Pressure Rating      :      5000 psi
Connection Type 1      :      SAE ORB
Connection Type 2      :      SAE 37 deg JIC

Standards/Certifications: Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov
