Brennan 6802-16-20-NWO-FG
Send Print
  1. pin-int

Brennan 6802-16-20-NWO-FG

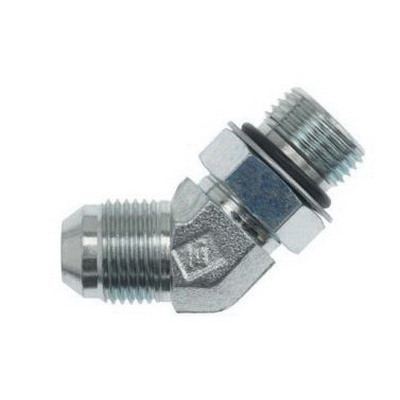

Brennan 6802-NWO-FG Forged Steel 45 deg Elbow, 1-1/4 in Male O-Ring Boss x 1 in Male JIC

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA 6802-16-20-NWO-FG
  • MPN: 6802-16-20-NWO-FG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan 6802-NWO-FG Forged Steel 45 deg Elbow, Connection Size 1: 1-1/4 in, Gender 1: Male, Connection Type 1: O-Ring Boss x Connection Size 2: 1 in, Gender 2: Male, Connection Type 2: JIC, 4000 psi

Series      :      6802-NWO-FG
Connection Size 1      :      1-1/4 in
Connection Size 2      :      1 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      1-1/4 in ORB
Shape      :      45° Elbow
Connection 2      :      1 in JIC
Thread Size 1      :      1-5/8-12
Thread Size 2      :      1-5/16-12
Dimension Standards      :      SAE 070320, MS 51528
Fitting Type      :      45 deg Elbow
Hex Size      :      1-7/8 in
Material      :      Forged Steel
Pressure Rating      :      4000 psi
Connection Type 1      :      O-Ring Boss
Connection Type 2      :      JIC
