Brennan 6806-24-24-NWO
Send Print
  1. pin-int

Brennan 6806-24-24-NWO

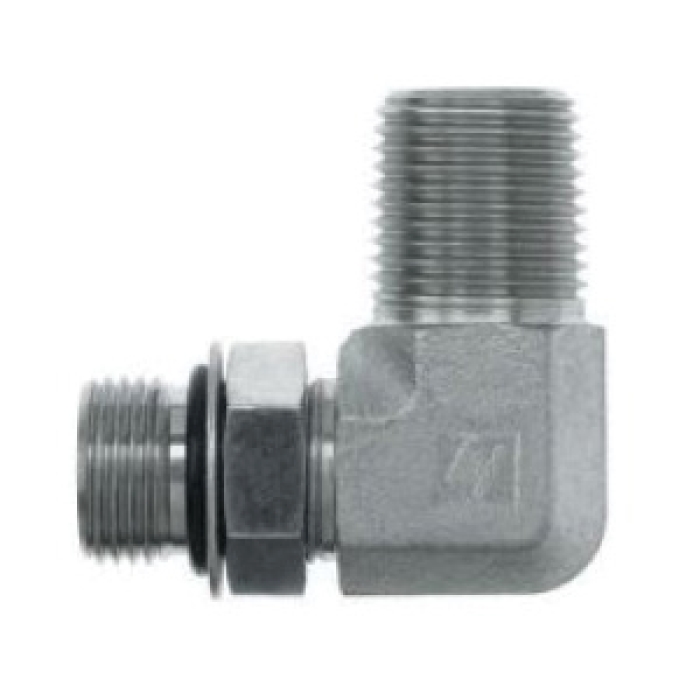

Brennan 6806-NWO Steel 90 deg Elbow, 1-1/2 in Male SAE ORB x 1-1/2 in MNPTF

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA 6806-24-24-NWO
  • MPN: 6806-24-24-NWO
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan 90 deg Elbow, Series: 6806-NWO, Connection Type 1: SAE ORB, Gender 1: Male, Connection Size 1: 1-1/2 in, Thread Size 1: 1-7/8-12, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1-1/2 in, Thread Size 2: 1-1/2-11-1/2, Hex Size: 2-1/8 in, 3000 psi, Steel

California residents see Prop 65 WARNINGS

Series      :      6806-NWO
Connection Size 1      :      1-1/2 in
Connection Size 2      :      1-1/2 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      1-1/2 in ORB
Shape      :      90 deg Elbow
Connection 2      :      1-1/2 in NPT
Thread Size 1      :      1-7/8-12
Thread Size 2      :      1-1/2-11-1/2
Fitting Type      :      90 deg Elbow
Hex Size      :      2-1/8 in
Material      :      Steel
Pressure Rating      :      3000 psi
Connection Type 1      :      SAE ORB
Connection Type 2      :      NPTF

Standards/Certifications: Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov
