Brennan 6901-04-06-NWO-FG

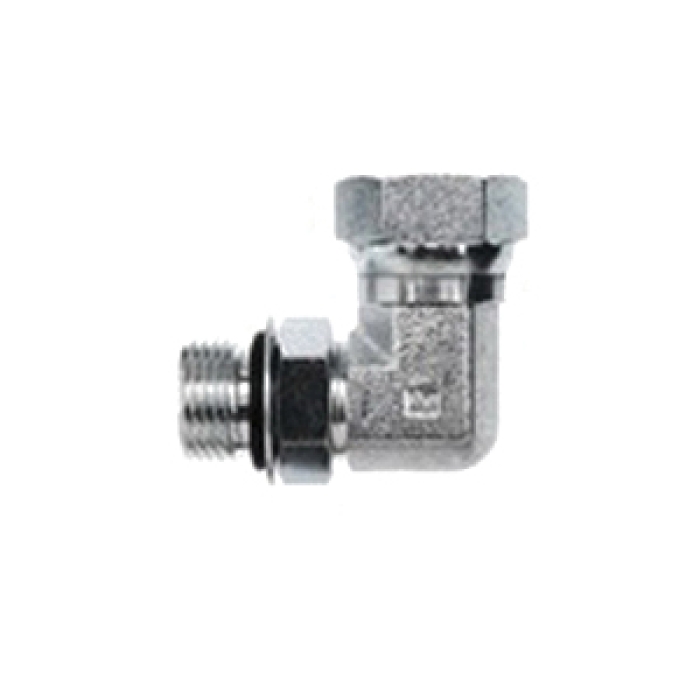

Brennan 6901-NWO-FG Forged Steel 90 deg Elbow, 1/4 in Male SAE ORB x 3/8 in FNPSM Swivel

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA 6901-04-06-NWO-FG
  • MPN: 6901-04-06-NWO-FG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan 90 deg Elbow, Series: 6901-NWO-FG, Connection Type 1: SAE ORB, Gender 1: Male, Connection Size 1: 1/4 in, Thread Size 1: 7/16-20, Connection Type 2: NPSM Swivel, Gender 2: Female, Connection Size 2: 3/8 in, Thread Size 2: 3/8-18, Hex Size: 0.563 x 0.875 in, 4000 psi, Forged Steel, Dimension Standards: SAE 140257

California residents see Prop 65 WARNINGS

Series      :      6901-NWO-FG
Connection Size 1      :      1/4 in
Connection Size 2      :      3/8 in
Gender 1      :      Male
Gender 2      :      Female
Connection 1      :      1/4 in ORB
Shape      :      90 deg Elbow
Connection 2      :      3/8 in NPSM Swivel
Thread Size 1      :      7/16-20
Thread Size 2      :      3/8-18
Dimension Standards      :      SAE 140257
Fitting Type      :      90 deg Elbow
Hex Size      :      0.563 x 0.875 in
Material      :      Forged Steel
Pressure Rating      :      4000 psi
Connection Type 1      :      SAE ORB
Connection Type 2      :      NPSM Swivel

Standards/Certifications: Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov
