Brennan 6902-10-08-NWO-FG

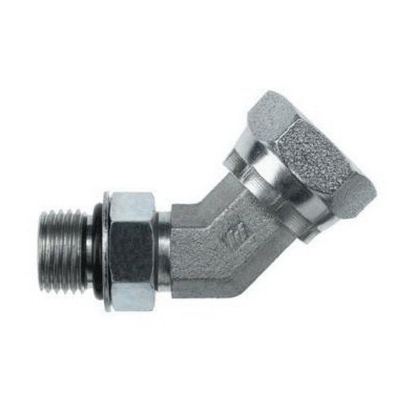

Brennan 6902-NWO-FG Forged Steel 45 deg Elbow, 5/8 in Male O-Ring Boss x 1/2 in Female NPSM

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA 6902-10-08
  • MPN: 6902-10-08-NWO-FG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan 6902-NWO-FG Forged Steel 45 deg Elbow, Connection Size 1: 5/8 in, Gender 1: Male, Connection Type 1: O-Ring Boss x Connection Size 2: 1/2 in, Gender 2: Female, Connection Type 2: NPSM, 3500 psi

Series      :      6902-NWO-FG
Connection Size 1      :      5/8 in
Connection Size 2      :      1/2 in
Gender 1      :      Male
Gender 2      :      Female
Connection 1      :      5/8 in ORB
Shape      :      45° Elbow
Connection 2      :      1/2 in NPSM
Thread Size 1      :      7/8-14
Thread Size 2      :      1/2-14
Dimension Standards      :      SAE 140357
Fitting Type      :      45 deg Elbow
Hex Size      :      1 x 1 in
Material      :      Forged Steel
Pressure Rating      :      3500 psi
Connection Type 1      :      O-Ring Boss
Connection Type 2      :      NPSM
