Brennan 7205-16-33-NWO-FG
Send Print
  1. pin-int

Brennan 7205-16-33-NWO-FG

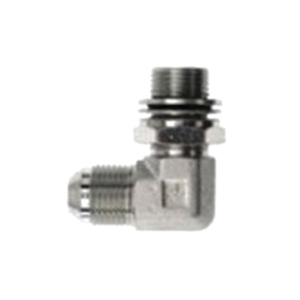

Brennan 7205 Forged Steel 90 deg Elbow, 33 mm Male Metric Port x 1 in Male JIC

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA 7205-16-33-NWO-FG
  • MPN: 7205-16-33-NWO-FG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan 7205 Forged Steel 90 deg Elbow, Connection Size 1: 33 mm, Gender 1: Male, Connection Type 1: Metric Port x Connection Size 2: 1 in, Gender 2: Male, Connection Type 2: JIC, 4000 psi

California residents see Prop 65 WARNINGS

Series      :      7205
Connection Size 1      :      33 mm
Connection Size 2      :      1 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      33 mm
Shape      :      90° Elbow
Connection 2      :      1 in JIC
Thread Size 1      :      M33 x 2
Thread Size 2      :      1-5/16-12
Fitting Type      :      90 deg Elbow
Hex Size      :      41 mm
Material      :      Forged Steel
Pressure Rating      :      4000 psi
Connection Type 1      :      Metric Port
Connection Type 2      :      JIC
