Brennan FS2500-04-04
Send Print
  1. pin-int

Brennan FS2500-04-04

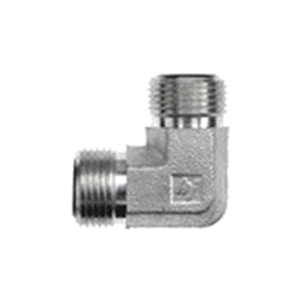

Brennan FS2500 Steel 90 deg Elbow, 1/4 in Male O-Ring Face Seal x 1/4 in Male O-Ring Face Seal

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA FS2500-04-04
  • MPN: FS2500-04-04
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan FS2500 Steel 90 deg Elbow, Connection Size 1: 1/4 in, Gender 1: Male, Connection Type 1: O-Ring Face Seal x Connection Size 2: 1/4 in, Gender 2: Male, Connection Type 2: O-Ring Face Seal, 9200 psi

Series      :      FS2500
Connection Size 1      :      1/4 in
Connection Size 2      :      1/4 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      1/4 in ORFS
Shape      :      90° Elbow
Connection 2      :      1/4 in ORFS
Thread Size 1      :      9/16-18
Thread Size 2      :      9/16-18
Dimension Standards      :      SAE 520201
Fitting Type      :      90 deg Elbow
Hex Size      :      0.562 in
Material      :      Steel
Pressure Rating      :      9200 psi
Connection Type 1      :      O-Ring Face Seal
Connection Type 2      :      O-Ring Face Seal
