Brennan FS6802-12-12-NWO-FG
Send Print
  1. pin-int

Brennan FS6802-12-12-NWO-FG

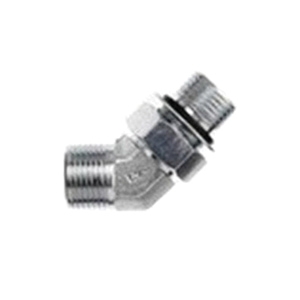

Brennan FS6802-NWO-FG Forged Steel 45 deg Elbow, 3/4 in Male O-Ring Face Seal x 3/4 in Male O-Ring Boss

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA FS6802-12-12-NWO
  • MPN: FS6802-12-12-NWO-FG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan FS6802-NWO-FG Forged Steel 45 deg Elbow, Connection Size 1: 3/4 in, Gender 1: Male, Connection Type 1: O-Ring Face Seal x Connection Size 2: 3/4 in, Gender 2: Male, Connection Type 2: O-Ring Boss, 5000 psi

Series      :      FS6802-NWO-FG
Connection Size 1      :      3/4 in
Connection Size 2      :      3/4 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      3/4 in ORFS
Shape      :      45° Elbow
Connection 2      :      3/4 in ORB
Thread Size 1      :      1-3/16-16
Thread Size 2      :      1-1/16-12
Dimension Standards      :      SAE 520320
Fitting Type      :      45 deg Elbow
Hex Size      :      1-3/8 in
Material      :      Forged Steel
Pressure Rating      :      5000 psi
Connection Type 1      :      O-Ring Face Seal
Connection Type 2      :      O-Ring Boss
