Brennan FS6809-08-08-NWO-FG

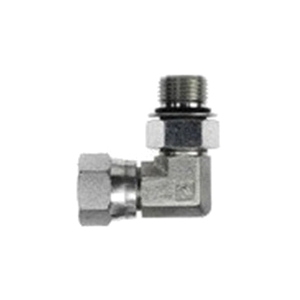

Brennan FS6809-NWO-FG Forged Steel 90 deg Elbow, 1/2 in Female O-Ring Face Seal x 1/2 in Male O-Ring Boss

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA FS6809-08-08
  • MPN: FS6809-08-08-NWO-FG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan FS6809-NWO-FG Forged Steel 90 deg Elbow, Connection Size 1: 1/2 in, Gender 1: Female, Connection Type 1: O-Ring Face Seal x Connection Size 2: 1/2 in, Gender 2: Male, Connection Type 2: O-Ring Boss, 6000 psi

Series      :      FS6809-NWO-FG
Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Gender 1      :      Female
Gender 2      :      Male
Connection 1      :      1/2 in ORFS
Shape      :      90° Elbow
Connection 2      :      1/2 in ORB
Thread Size 1      :      13/16-16
Thread Size 2      :      3/4-16
Dimension Standards      :      SAE 520281
Fitting Type      :      90 deg Elbow
Hex Size      :      0.938 in
Material      :      Forged Steel
Pressure Rating      :      6000 psi
Connection Type 1      :      O-Ring Face Seal
Connection Type 2      :      O-Ring Boss
