Anchor Fluid Power SP-32U
Send Print
  1. pin-int

Anchor Fluid Power SP-32U

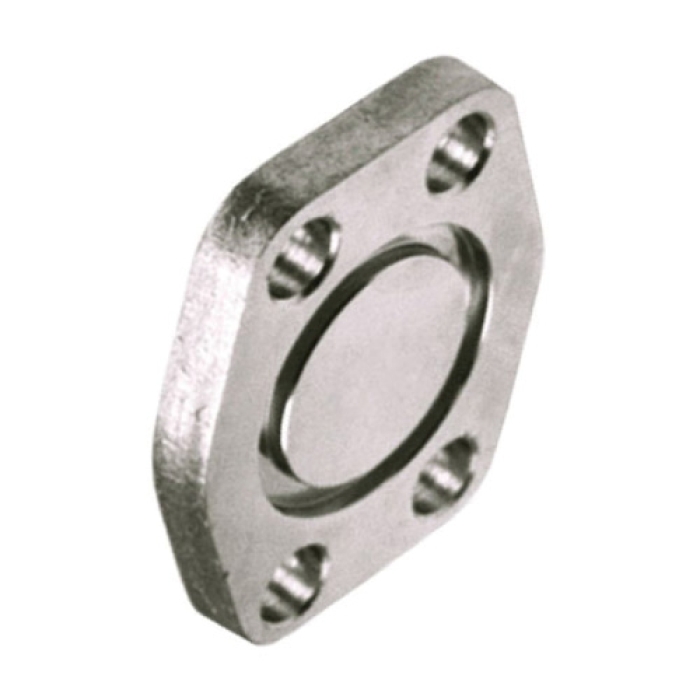

Anchor Fluid Power SP-32U Silver Trivalent-Plated Carbon Steel Zero PSI Shipping Plate Kit, 2 in SAE Code 61 Flange

  • Manufacturers: Anchor Fluid Power
  • Brand Name: Anchor Fluid Power
  • Tipco Part No: ANC SP-32U
  • MPN: SP-32U
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Anchor Fluid Power Zero PSI Shipping Plate Kit, Connection Type 1: SAE Code 61 Flange, Connection Size 1: 2 in, Carbon Steel, 3.8 in Width, 4 in Height

Fitting Type      :      Shipping Plate Kit
Material      :      Carbon Steel
Finish      :      Silver Trivalent-Plated
Connection 1      :      2 in Code 61
Width      :      3.8 in
Height      :      4 in
Connection Type 1      :      SAE Code 61 Flange
Connection Size 1      :      2 in

Anchor fluid power has developed a low cost solution to leaky, gasketless port covers. Forged steel shipping plates are 0.33 in thick, silver trivalent plated for resistance to oxidation and incorporate an O-ring groove on one side for zero pressure applications. The opposite side has a machined flat-face for capping off hose ends.

  • Includes (1) shipping plate, (4) hex head bolts and (1) Buna-N O-ring

Applications: For cylinder port covers, pump port covers, stub out header line covers
