Adaptall 5000L-10-08

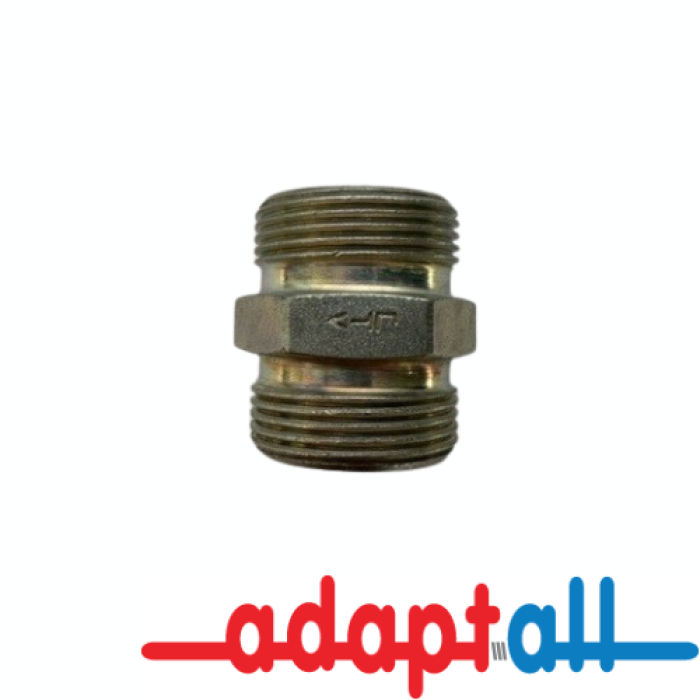

Adaptall 5000L Carbon Steel Straight Union, L10 Male Metric DIN 24° Tube x L08 Male Metric DIN 24° Tube

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 5000L-10-08
  • MPN: 5000L-10-08
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 5000L Carbon Steel Straight Union, Connection Size 1: L10, Gender 1: Male, Connection Type 1: Metric DIN 24° Tube x Connection Size 2: L08, Gender 2: Male, Connection Type 2: Metric DIN 24° Tube

Series      :      5000L
Connection Size 1      :      L10
Connection Size 2      :      L08
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      10 mm Light
Shape      :      Straight
Connection 2      :      8 mm Light
Thread Size 1      :      M16 x 1.5
Thread Size 2      :      M14 x 1.5
Dimension Standards      :      ISO 8434-1, DIN 2353
Length      :      26 mm
Fitting Type      :      Straight Union
Hex Size      :      17 mm
Material      :      Carbon Steel
Connection Type 1      :      Metric DIN 24° Tube
Connection Type 2      :      Metric DIN 24° Tube
