Adaptall 5002L-22-12

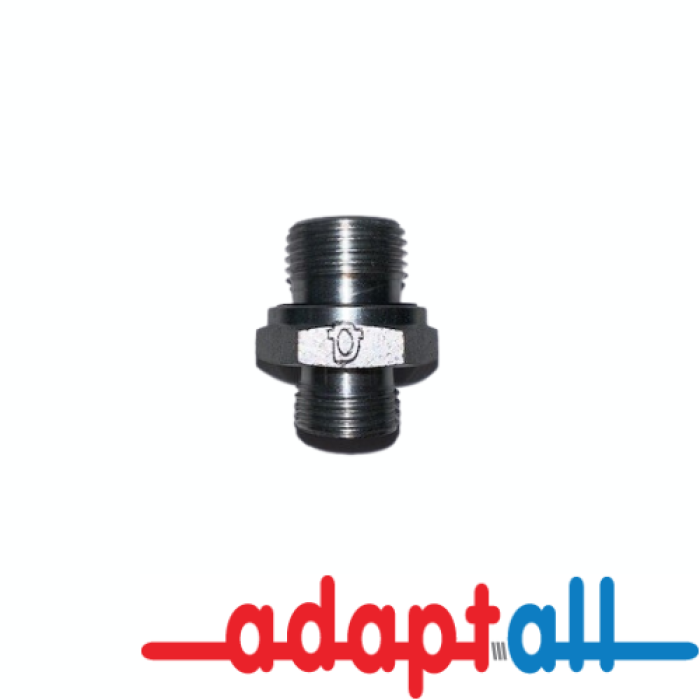

Adaptall 5002L Carbon Steel Straight Adapter, L22 Male Metric DIN 24° Tube x 3/4 in Male BSPP

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 5002L-22-12
  • MPN: 5002L-22-12
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 5002L Carbon Steel Straight Adapter, Connection Size 1: L22, Gender 1: Male, Connection Type 1: Metric DIN 24° Tube x Connection Size 2: 3/4 in, Gender 2: Male, Connection Type 2: BSPP

Series      :      5002L
Connection Size 1      :      L22
Connection Size 2      :      3/4 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      22 mm Light
Shape      :      Straight
Connection 2      :      3/4 in BSPP
Thread Size 1      :      M30 x 2
Thread Size 2      :      G 3/4-14
Dimension Standards      :      ISO 8434-1, DIN 2353, ISO 1179, ISO 8434-6, BS 5200
Length      :      40 mm
Fitting Type      :      Straight Adapter
Hex Size      :      32 mm
Material      :      Carbon Steel
Connection Type 1      :      Metric DIN 24° Tube
Connection Type 2      :      BSPP
