Adaptall 5007S-08-04
Send Print
  1. pin-int

Adaptall 5007S-08-04

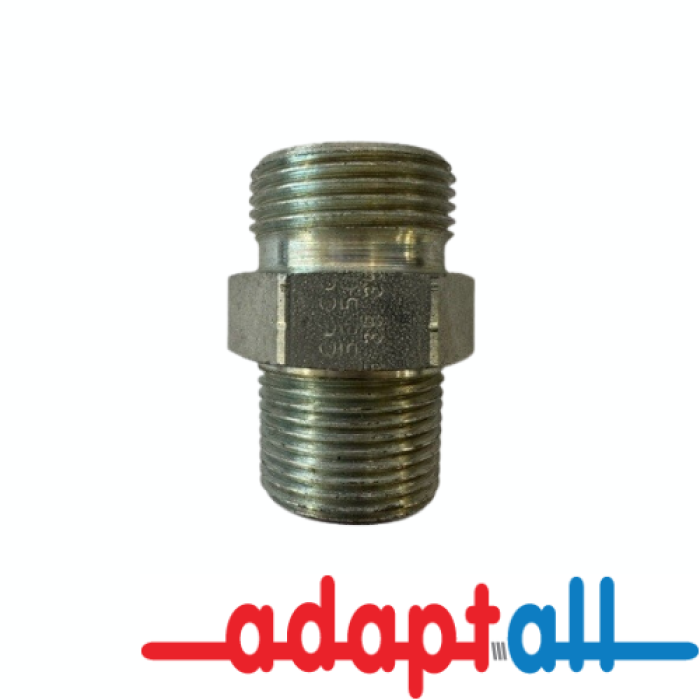

Adaptall 5007S Carbon Steel Straight Adapter, S08 Male Metric DIN 24° Tube x 1/4 in Male NPT

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 5007S-08-04
  • MPN: 5007S-08-04
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 5007S Carbon Steel Straight Adapter, Connection Size 1: S08 , Gender 1: Male, Connection Type 1: Metric DIN 24° Tube x Connection Size 2: 1/4 in, Gender 2: Male, Connection Type 2: NPT

Series      :      5007S
Connection Size 1      :      S08
Connection Size 2      :      1/4 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      8 mm Heavy
Shape      :      Straight
Connection 2      :      1/4 in NPT
Thread Size 1      :      M16 x 1.5
Thread Size 2      :      1/4-18
Dimension Standards      :      ISO 8434-1, DIN 2353, ANSI B1.20.3
Length      :      35 mm
Fitting Type      :      Straight Adapter
Hex Size      :      17 mm
Material      :      Carbon Steel
Connection Type 1      :      Metric DIN 24° Tube
Connection Type 2      :      NPT
