Adaptall 5011LL-06-02C
Send Print
  1. pin-int

Adaptall 5011LL-06-02C

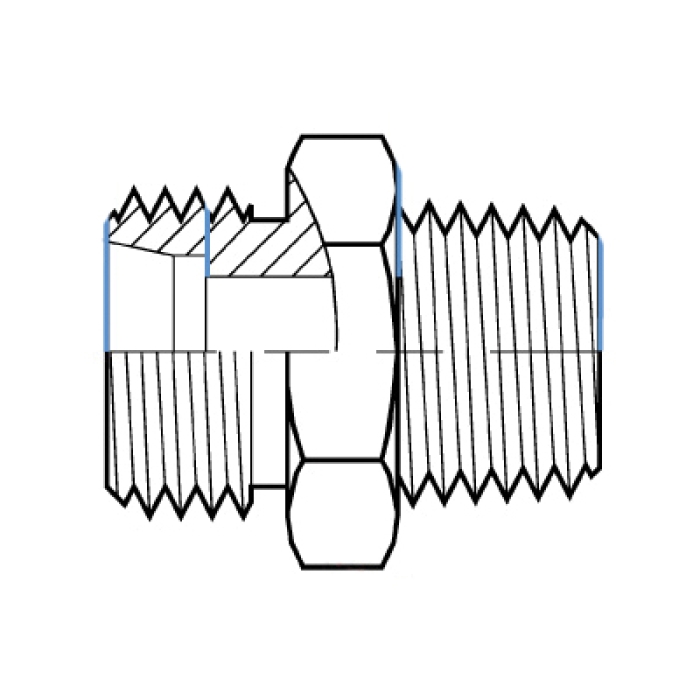

Adaptall 5011 Carbon Steel Extra Light-Duty Straight Adapter, 6 mm Male DIN 24 deg Tube x 1/8 in Male BSPT

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 5011LL-06-02C
  • MPN: 5011LL-06-02C
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall Extra Light-Duty Straight Adapter, Series: 5011, Connection Type 1: DIN 24 deg Tube, Gender 1: Male, Connection Size 1: 6 mm, Thread Size 1: M10 x 1, Connection Type 2: BSPT, Gender 2: Male, Connection Size 2: 1/8 in, Thread Size 2: R 1/8-28, Hex Size: 11 mm, Carbon Steel, 20 mm Length, Dimension Standards: DIN 2353, DIN EN 10226-1, ISO 7-1, ISO 8434-1

Series      :      5011
Connection Size 1      :      6 mm
Connection Size 2      :      1/8 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      6 mm Metric
Shape      :      Straight
Connection 2      :      1/8 in BSPT
Thread Size 1      :      M10 x 1
Thread Size 2      :      R 1/8-28
Dimension Standards      :      DIN 2353, DIN EN 10226-1, ISO 7-1, ISO 8434-1
Length      :      20 mm
Fitting Type      :      Straight Adapter
Hex Size      :      11 mm
Material      :      Carbon Steel
Connection Type 1      :      DIN 24 deg Tube
Connection Type 2      :      BSPT
