Adaptall 5011S-10-06

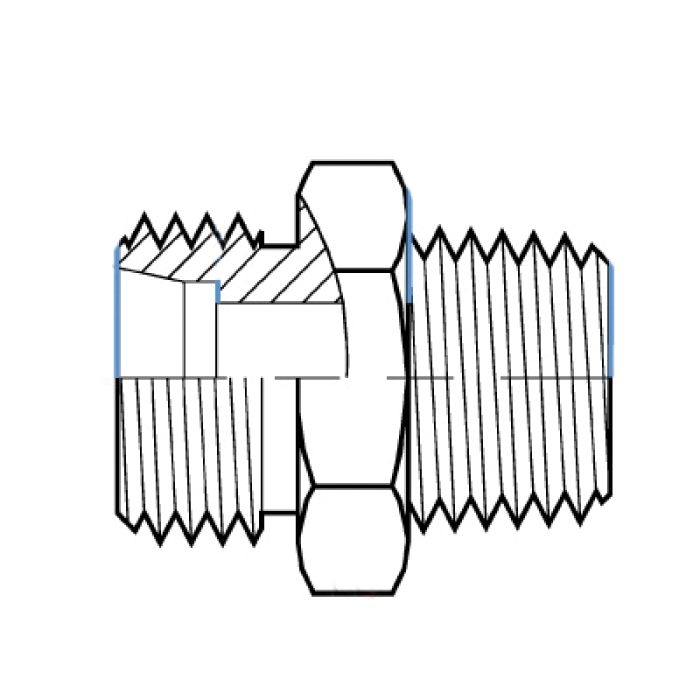

Adaptall 5011S Carbon Steel Straight Adapter, S10 Male Metric DIN 24° Tube x 3/8 in Male BSPT

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 5011S-10-06
  • MPN: 5011S-10-06
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 5011S Carbon Steel Straight Adapter, Connection Size 1: S10 , Gender 1: Male, Connection Type 1: Metric DIN 24° Tube x Connection Size 2: 3/8 in, Gender 2: Male, Connection Type 2: BSPT

Series      :      5011S
Connection Size 1      :      S10
Connection Size 2      :      3/8 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      10 mm Heavy
Shape      :      Straight
Connection 2      :      3/8 in BSPT
Thread Size 1      :      M18 x 1.5
Thread Size 2      :      R 3/8-19
Dimension Standards      :      ISO 8434-1, DIN 2353, ISO 7-1, DIN EN 10226-1
Fitting Type      :      Straight Adapter
Material      :      Carbon Steel
Connection Type 1      :      Metric DIN 24° Tube
Connection Type 2      :      BSPT
