Adaptall 5040L-08
Send Print
  1. pin-int

Adaptall 5040L-08

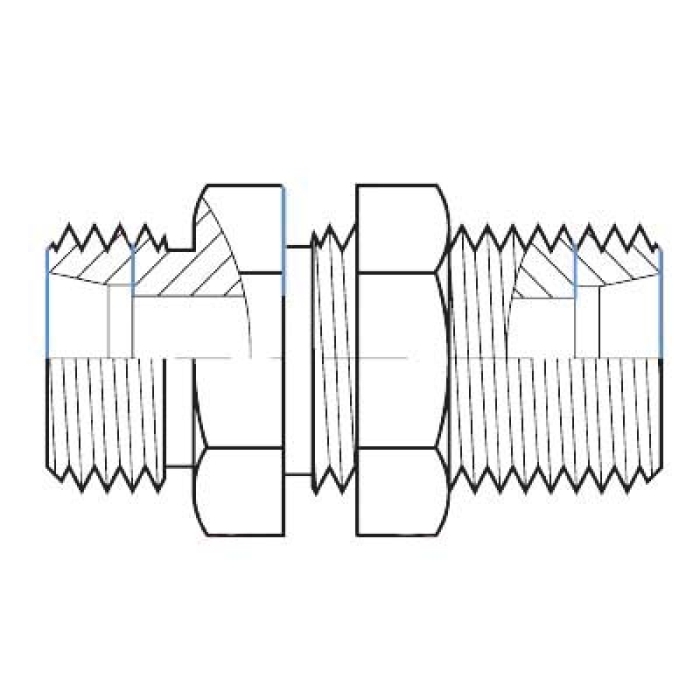

Adaptall 5040 Carbon Steel Light-Duty Bulkhead Straight Union, 8 mm Male DIN 24 deg Tube

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 5040L-08
  • MPN: 5040L-08
  • UPC: 5040L-008
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall Light-Duty Bulkhead Straight Union, Series: 5040, Connection Type 1: DIN 24 deg Tube, Gender 1: Male, Connection Size 1: 8 mm, Thread Size 1: M14 x 1.5, Connection Type 2: DIN 24 deg Tube, Gender 2: Male, Connection Size 2: 8 mm, Thread Size 2: M14 x 1.5, Hex Size: 19 mm, Carbon Steel, 49 mm Length, Dimension Standards: DIN 2353, ISO 8434-1

Series      :      5040
Connection Size 1      :      8 mm
Connection Size 2      :      8 mm
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      8 mm Metric
Shape      :      Straight
Connection 2      :      8 mm Metric
Thread Size 1      :      M14 x 1.5
Thread Size 2      :      M14 x 1.5
Dimension Standards      :      DIN 2353, ISO 8434-1
Length      :      49 mm
Fitting Type      :      Straight Union
Hex Size      :      19 mm
Material      :      Carbon Steel
Connection Type 1      :      DIN 24 deg Tube
Connection Type 2      :      DIN 24 deg Tube
