Adaptall 5040S-10C
Send Print
  1. pin-int

Adaptall 5040S-10C

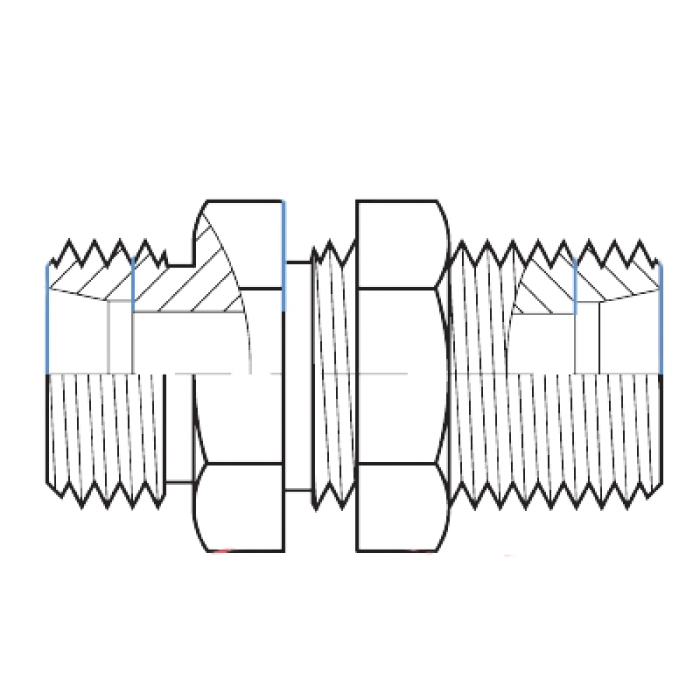

Adaptall 5040S Carbon Steel Straight Union, S10 Male Metric DIN 24° Tube x S10 Male Metric DIN 24° Tube

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 5040S-10C
  • MPN: 5040S-10C
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 5040S Carbon Steel Straight Union, Connection Size 1: S10 , Gender 1: Male, Connection Type 1: Metric DIN 24° Tube x Connection Size 2: S10, Gender 2: Male, Connection Type 2: Metric DIN 24° Tube

Series      :      5040S
Connection Size 1      :      S10
Connection Size 2      :      S10
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      10 mm Heavy
Shape      :      Straight
Connection 2      :      10 mm Heavy
Thread Size 1      :      M18 x 1.5
Thread Size 2      :      M18 x 1.5
Dimension Standards      :      ISO 8434-1, DIN 2353, ISO 8434-1, DIN 2353
Length      :      59 mm
Fitting Type      :      Straight Union
Width      :      24 mm
Material      :      Carbon Steel
Connection Type 1      :      Metric DIN 24° Tube
Connection Type 2      :      Metric DIN 24° Tube
