Adaptall 5068L-12-18
Send Print
  1. pin-int

Adaptall 5068L-12-18

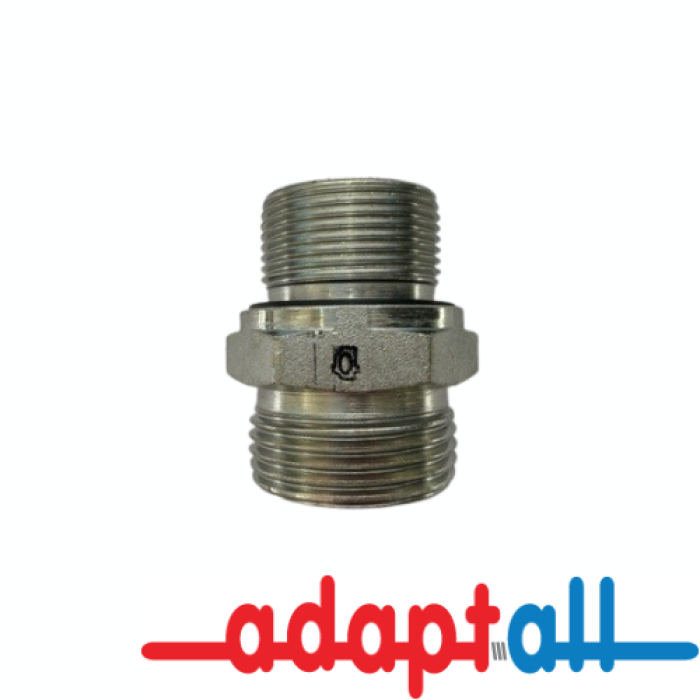

Adaptall 5068 Carbon Steel Straight Adapter, L12 Male Metric DIN 24° Tube x 18 mm Male Metric Port

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 5068L-12-18
  • MPN: 5068L-12-18
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 5068 Carbon Steel Straight Adapter, Connection Size 1: L12, Gender 1: Male, Connection Type 1: Metric DIN 24° Tube x Connection Size 2: 18 mm, Gender 2: Male, Connection Type 2: Metric Port

Series      :      5068
Connection Size 1      :      L12
Connection Size 2      :      18 mm
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      12 mm Light
Shape      :      Straight
Connection 2      :      18 mm Light
Thread Size 1      :      M18 x 1.5
Thread Size 2      :      M18 x 1.5
Dimension Standards      :      ISO 8434-1, DIN 2353, ISO 9974, ISO 6149, DIN 7631
Length      :      31.5 mm
Fitting Type      :      Straight Adapter
Hex Size      :      24 mm
Material      :      Carbon Steel
Connection Type 1      :      Metric DIN 24° Tube
Connection Type 2      :      Metric Port
