Adaptall 5068S-20-27

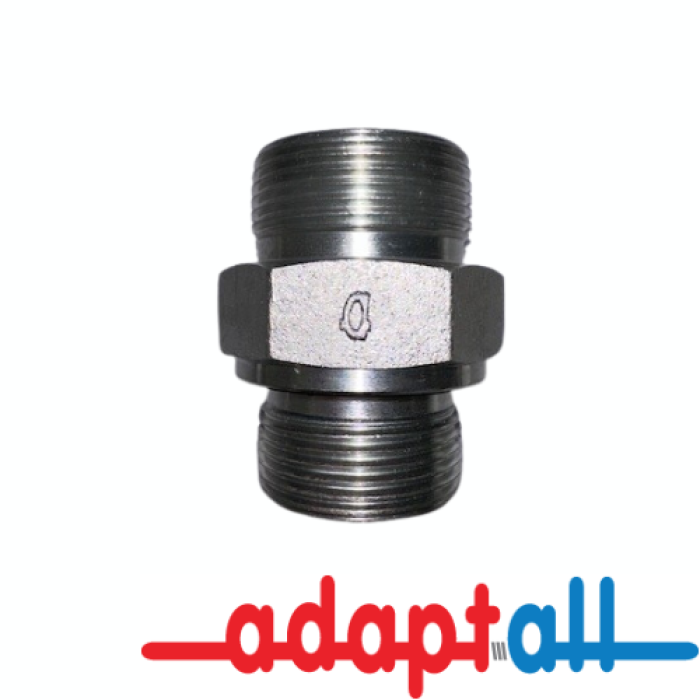

Adaptall 5068 Carbon Steel Straight Adapter, S20 Male Metric DIN 24° Tube x 27 mm Male Metric Port

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 5068S-20-27
  • MPN: 5068S-20-27
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 5068 Carbon Steel Straight Adapter, Connection Size 1: S20 , Gender 1: Male, Connection Type 1: Metric DIN 24° Tube x Connection Size 2: 27 mm, Gender 2: Male, Connection Type 2: Metric Port

Series      :      5068
Connection Size 1      :      S20
Connection Size 2      :      27 mm
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      20 mm Heavy
Shape      :      Straight
Connection 2      :      27 mm Heavy
Thread Size 1      :      M30 x 2
Thread Size 2      :      M27 x 2
Dimension Standards      :      ISO 8434-1, DIN 2353, ISO 9974, ISO 6149, DIN 7631
Length      :      47 mm
Fitting Type      :      Straight Adapter
Hex Size      :      32 mm
Material      :      Carbon Steel
Connection Type 1      :      Metric DIN 24° Tube
Connection Type 2      :      Metric Port
