Adaptall 5068LLT-04-8X1C
Send Print
  1. pin-int

Adaptall 5068LLT-04-8X1C

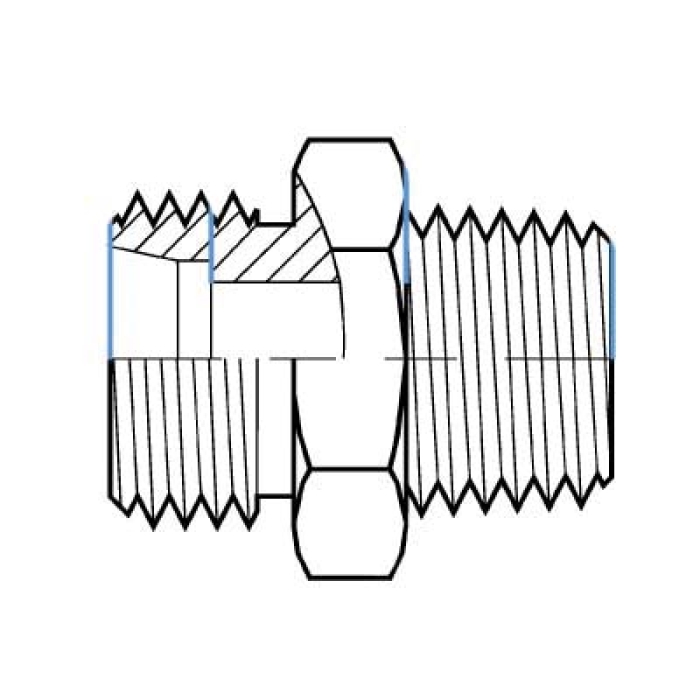

Adaptall 5068LLT Carbon Steel Extra Light-Duty Straight Adapter, 4 mm Male DIN 24 deg Tube x 8 mm Male Metric Taper

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 5068LLT-04-8X1C
  • MPN: 5068LLT-04-8X1C
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall Extra Light-Duty Straight Adapter, Series: 5068LLT, Connection Type 1: DIN 24 deg Tube, Gender 1: Male, Connection Size 1: 4 mm, Thread Size 1: M8 x 1, Connection Type 2: Metric Taper, Gender 2: Male, Connection Size 2: 8 mm, Thread Size 2: M8 x 1, Carbon Steel, Dimension Standards: DIN 158, DIN 2353, ISO 8434-1

Series      :      5068LLT
Connection Size 1      :      4 mm
Connection Size 2      :      8 mm
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      4 mm Metric
Shape      :      Straight
Connection 2      :      8 mm Metric
Thread Size 1      :      M8 x 1
Thread Size 2      :      M8 x 1
Dimension Standards      :      DIN 158, DIN 2353, ISO 8434-1
Fitting Type      :      Straight Adapter
Material      :      Carbon Steel
Connection Type 1      :      DIN 24 deg Tube
Connection Type 2      :      Metric Taper
