Adaptall 5307S-08-04

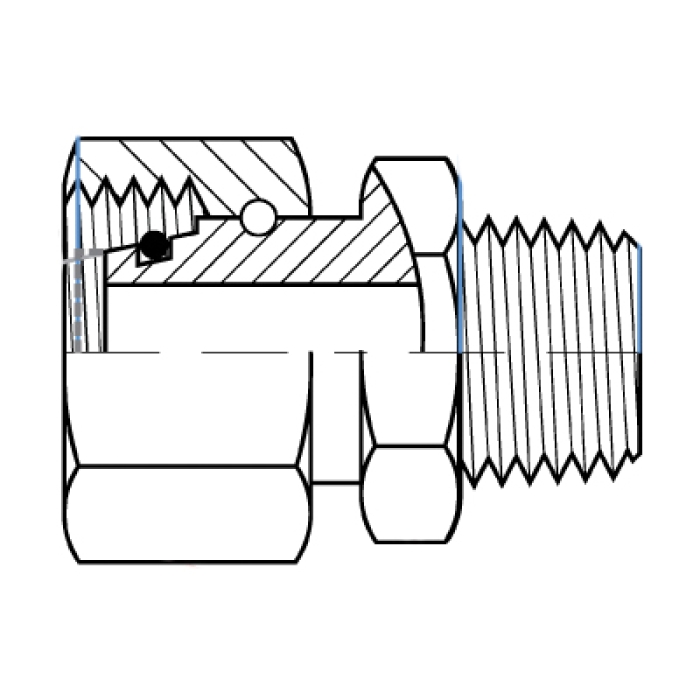

Adaptall 5307 Carbon Steel Heavy-Duty Adapter, 8 mm Female DIN 24 deg Tube Swivel x 1/4 in MNPT

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 5307S-08-04
  • MPN: 5307S-08-04
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Adaptall Heavy-Duty Adapter, Series: 5307, Connection Type 1: DIN 24 deg Tube Swivel, Gender 1: Female, Connection Size 1: 8 mm, Thread Size 1: M16 x 1.5, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 17 x 19 mm, Carbon Steel, 41.5 mm Length, Dimension Standards: ANSI B1.20.3, DIN 2353, ISO 8434-1

Series      :      5307
Connection Size 1      :      8 mm
Connection Size 2      :      1/4 in
Gender 1      :      Female
Gender 2      :      Male
Connection 1      :      8 mm Metric Swivel
Shape      :      Straight
Connection 2      :      1/4 in NPT
Thread Size 1      :      M16 x 1.5
Thread Size 2      :      1/4-18
Dimension Standards      :      ANSI B1.20.3, DIN 2353, ISO 8434-1
Length      :      41.5 mm
Fitting Type      :      Straight Adapter
Hex Size      :      17 x 19 mm
Material      :      Carbon Steel
Connection Type 1      :      DIN 24 deg Tube Swivel
Connection Type 2      :      NPT
