Adaptall 5315S-30-25

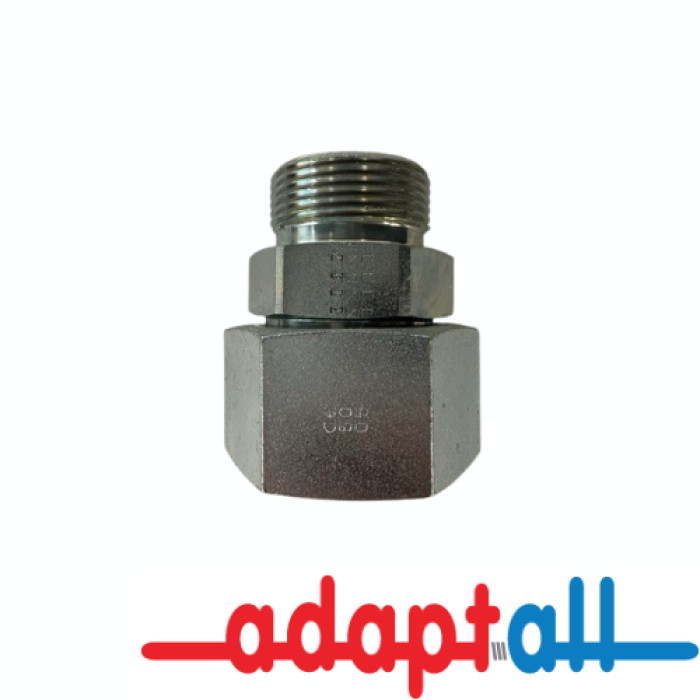

Adaptall 5315S Carbon Steel Reducer, S30 Female Metric DIN 24° Tube x S25 Male Metric DIN 24° Tube

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 5315S-30-25
  • MPN: 5315S-30-25
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 5315S Carbon Steel Reducer, Connection Size 1: S30, Gender 1: Female, Connection Type 1: Metric DIN 24° Tube x Connection Size 2: S25, Gender 2: Male, Connection Type 2: Metric DIN 24° Tube

Series      :      5315S
Connection Size 1      :      S30
Connection Size 2      :      S25
Gender 1      :      Female
Gender 2      :      Male
Connection 1      :      30 mm Heavy
Shape      :      Straight
Connection 2      :      25 mm Heavy
Thread Size 1      :      M42 x 2
Thread Size 2      :      M36 x 2
Dimension Standards      :      ISO 8434-1, DIN 2353
Fitting Type      :      Reducer
Hex Size      :      41 x 50 mm
Material      :      Carbon Steel
Connection Type 1      :      Metric DIN 24° Tube
Connection Type 2      :      Metric DIN 24° Tube
