Adaptall 6068-10-22
Send Print
  1. pin-int

Adaptall 6068-10-22

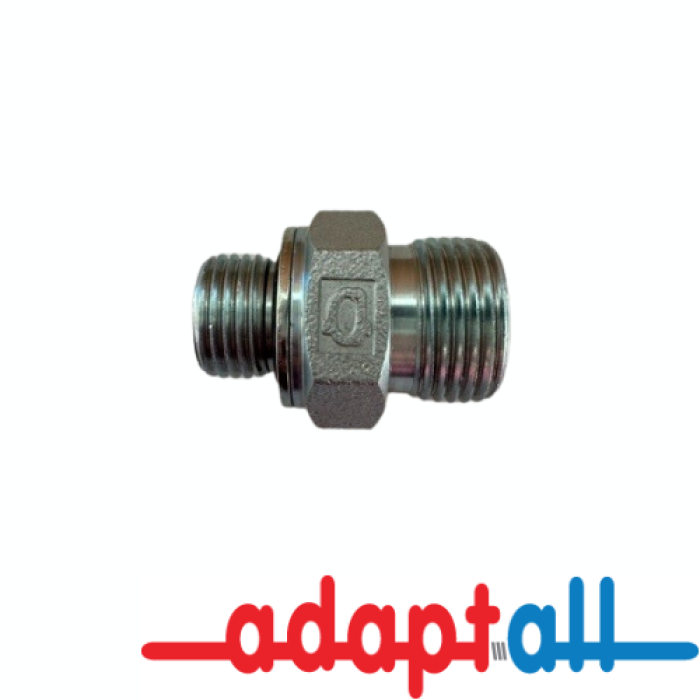

Adaptall 6068 Carbon Steel Straight Adapter, 22 mm Male Metric Port x 5/8 in Male O-Ring Face Seal

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 6068-10-22
  • MPN: 6068-10-22
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 6068 Carbon Steel Straight Adapter, Connection Size 1: 22 mm, Gender 1: Male, Connection Type 1: Metric Port x Connection Size 2: 5/8 in, Gender 2: Male, Connection Type 2: O-Ring Face Seal

Series      :      6068
Connection Size 1      :      22 mm
Connection Size 2      :      5/8 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      22 mm
Shape      :      Straight
Connection 2      :      5/8 in ORFS
Thread Size 1      :      M22 x 1.5
Thread Size 2      :      1-14
Dimension Standards      :      DIN 7631, ISO 8434-3, ISO 9974, ISO 6149, SAE J1453
Length      :      40.6 mm
Fitting Type      :      Straight Adapter
Hex Size      :      30 mm
Material      :      Carbon Steel
Connection Type 1      :      Metric Port
Connection Type 2      :      O-Ring Face Seal
