Adaptall 6237-04-14
Send Print
  1. pin-int

Adaptall 6237-04-14

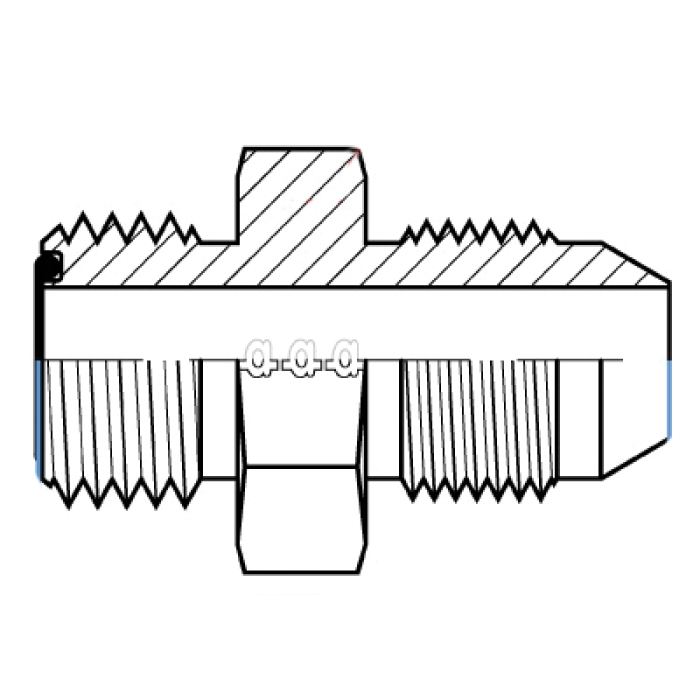

Adaptall 6237 Carbon Steel Straight Adapter, 14 mm Male Komatsu x 1/4 in Male O-Ring Face Seal

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 6237-04-14
  • MPN: 6237-04-14
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Adaptall 6237 Carbon Steel Straight Adapter, Connection Size 1: 14 mm, Gender 1: Male, Connection Type 1: Komatsu x Connection Size 2: 1/4 in, Gender 2: Male, Connection Type 2: O-Ring Face Seal

Series      :      6237
Connection Size 1      :      14 mm
Connection Size 2      :      1/4 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      14 mm Komatsu
Shape      :      Straight
Connection 2      :      1/4 in ORFS
Thread Size 1      :      M14 x 1.5
Thread Size 2      :      9/16-18
Dimension Standards      :      SAE J1453, ISO 8434-3, ISO 261
Length      :      37.2 mm
Fitting Type      :      Straight Adapter
Width      :      19 mm
Hex Size      :      19 mm
Material      :      Carbon Steel
Connection Type 1      :      Komatsu
Connection Type 2      :      O-Ring Face Seal
