Adaptall 6605-08-L15-22

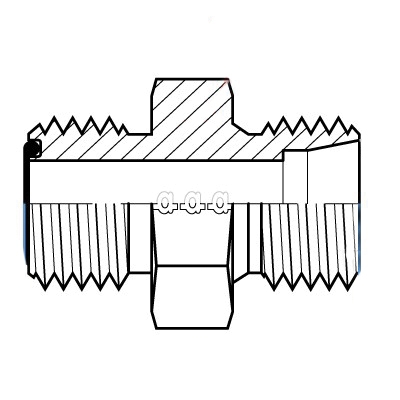

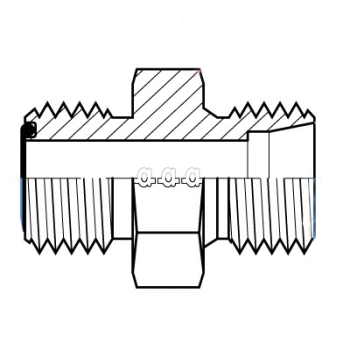

Adaptall 6605 Carbon Steel Straight Adapter, L15 Male Metric DIN 24° Tube x 1/2 in Male O-Ring Face Seal

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 6605-08-L15-22
  • MPN: 6605-08-L15-22
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Adaptall 6605 Carbon Steel Straight Adapter, Connection Size 1: L15, Gender 1: Male, Connection Type 1: Metric DIN 24° Tube x Connection Size 2: 1/2 in, Gender 2: Male, Connection Type 2: O-Ring Face Seal

Series      :      6605
Connection Size 1      :      L15
Connection Size 2      :      1/2 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      15 mm Light
Shape      :      Straight
Connection 2      :      1/2 in ORFS
Thread Size 1      :      M22 x 1.5
Thread Size 2      :      13/16-16
Dimension Standards      :      DIN 2353, ISO 8434-3, ISO 8434-1, SAE J1453
Length      :      41.1 mm
Fitting Type      :      Straight Adapter
Hex Size      :      27 mm
Material      :      Carbon Steel
Connection Type 1      :      Metric DIN 24° Tube
Connection Type 2      :      O-Ring Face Seal
