Adaptall 9001-22-22

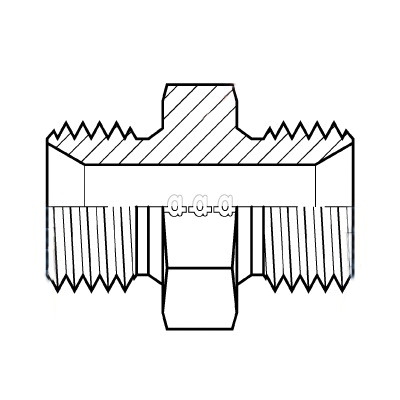

Adaptall 9001 Carbon Steel Straight Adapter, 22 mm Male Metric DIN 60° Flare x 22 mm Male Metric DIN 60° Flare

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9001-22-22
  • MPN: 9001-22-22
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 9001 Carbon Steel Straight Adapter, Connection Size 1: 22 mm, Gender 1: Male, Connection Type 1: Metric DIN 60° Flare x Connection Size 2: 22 mm, Gender 2: Male, Connection Type 2: Metric DIN 60° Flare

Series      :      9001
Connection Size 1      :      22 mm
Connection Size 2      :      22 mm
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      22 mm Metric 60
Shape      :      Straight
Connection 2      :      22 mm Metric 60°
Thread Size 1      :      M22 x 1.5
Thread Size 2      :      M22 x 1.5
Dimension Standards      :      ISO 9974, ISO 6149, DIN 7631
Length      :      40.9 mm
Fitting Type      :      Straight Adapter
Hex Size      :      27 mm
Material      :      Carbon Steel
Connection Type 1      :      Metric DIN 60° Flare
Connection Type 2      :      Metric DIN 60° Flare
