Adaptall 9001-24-24 ADC 9001-24-24 | Tipco Technologies
Adaptall 9001-24-24
Send Print
  1. pin-int

Adaptall 9001-24-24

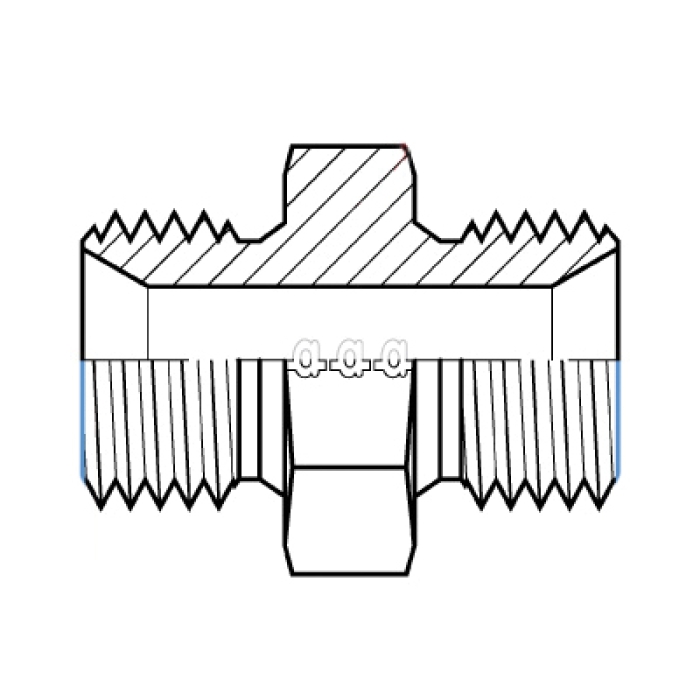

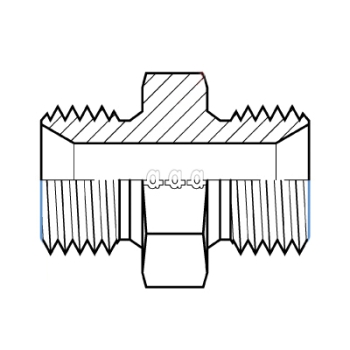

Adaptall 9001 Carbon Steel Straight Adapter, 24 mm Male Metric 60 deg Flare

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9001-24-24
  • MPN: 9001-24-24
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Adaptall Straight Adapter, Series: 9001, Connection Type 1: Metric 60 deg Flare, Gender 1: Male, Connection Size 1: 24 mm, Thread Size 1: M24 x 1.5, Connection Type 2: Metric 60 deg Flare, Gender 2: Male, Connection Size 2: 24 mm, Thread Size 2: M24 x 1.5, Hex Size: 32 mm, Carbon Steel, 47.6 mm Length, Dimension Standards: DIN 7631, ISO 6149, ISO 9974

Series      :      9001
Connection Size 1      :      24 mm
Connection Size 2      :      24 mm
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      24 mm Metric
Shape      :      Straight
Connection 2      :      24 mm Metric
Thread Size 1      :      M24 x 1.5
Thread Size 2      :      M24 x 1.5
Dimension Standards      :      DIN 7631, ISO 6149, ISO 9974
Length      :      47.6 mm
Fitting Type      :      Straight Adapter
Hex Size      :      32 mm
Material      :      Carbon Steel
Connection Type 1      :      Metric 60 deg Flare
Connection Type 2      :      Metric 60 deg Flare
