Adaptall 9002-06-06

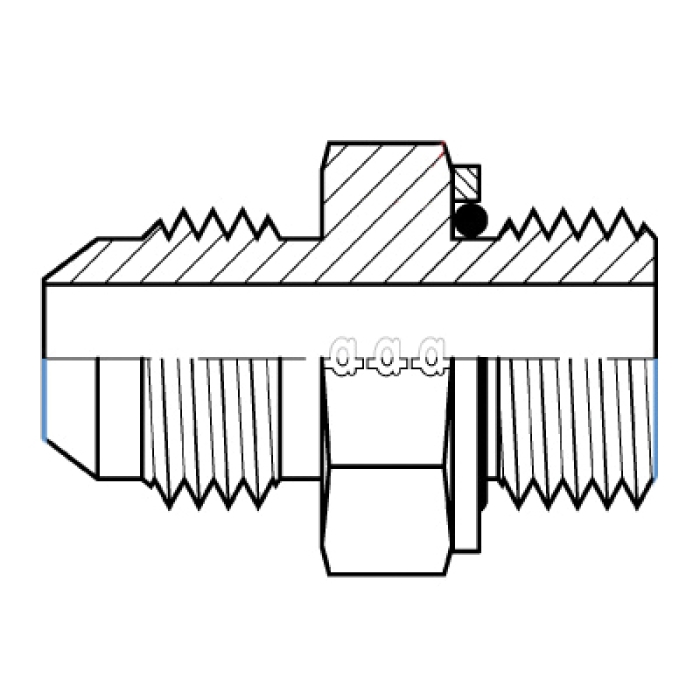

Adaptall 9002 Carbon Steel Straight Adapter with Washer and O-Ring, 3/8 in Male BSPP x 3/8 in Male JIC

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9002-06-06
  • MPN: 9002-06-06
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall Straight Adapter with Washer and O-Ring, Series: 9002, Connection Type 1: BSPP, Gender 1: Male, Connection Size 1: 3/8 in, Thread Size 1: G 3/8-19, Connection Type 2: JIC, Gender 2: Male, Connection Size 2: 3/8 in, Thread Size 2: 9/16-18 UNF, Hex Size: 22 mm, Carbon Steel, 35.6 mm Length, Dimension Standards: BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514

Series      :      9002
Connection Size 1      :      3/8 in
Connection Size 2      :      3/8 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      3/8 in BSPP
Shape      :      Straight
Connection 2      :      3/8 in JIC
Thread Size 1      :      G 3/8-19
Thread Size 2      :      9/16-18 UNF
Dimension Standards      :      BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514
Length      :      35.6 mm
Fitting Type      :      Straight Adapter
Hex Size      :      22 mm
Material      :      Carbon Steel
Connection Type 1      :      BSPP
Connection Type 2      :      JIC
