Adaptall 9009-16-16

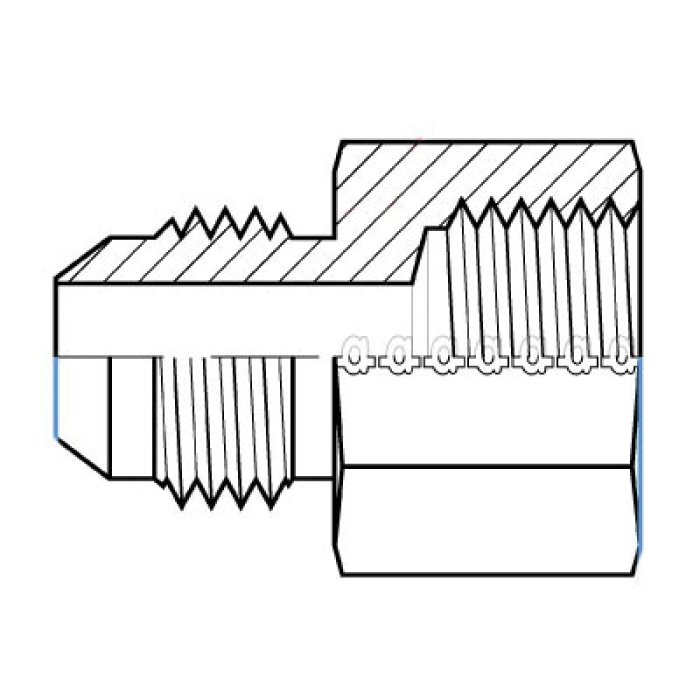

Adaptall 9009 Carbon Steel Straight Adapter, 1 in Female BSPP x 1 in Male JIC

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9009-16-16
  • MPN: 9009-16-16
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall Straight Adapter, Series: 9009, Connection Type 1: BSPP, Gender 1: Female, Connection Size 1: 1 in, Thread Size 1: 1-5/16-12 UN, Connection Type 2: JIC, Gender 2: Male, Connection Size 2: 1 in, Thread Size 2: G 1-11, Hex Size: 41 mm, Carbon Steel, 54.9 mm Length, Dimension Standards: BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514

Series      :      9009
Connection Size 1      :      1 in
Connection Size 2      :      1 in
Gender 1      :      Female
Gender 2      :      Male
Connection 1      :      1 in BSPP
Shape      :      Straight
Connection 2      :      1 in JIC
Thread Size 1      :      1-5/16-12 UN
Thread Size 2      :      G 1-11
Dimension Standards      :      BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514
Length      :      54.9 mm
Fitting Type      :      Straight Adapter
Hex Size      :      41 mm
Material      :      Carbon Steel
Connection Type 1      :      BSPP
Connection Type 2      :      JIC
