Adaptall 9011-04-02
Send Print
  1. pin-int

Adaptall 9011-04-02

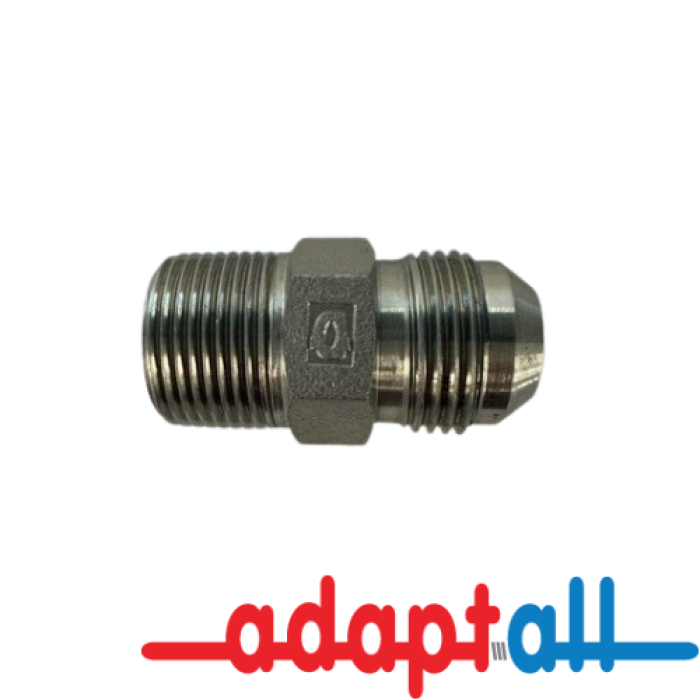

Adaptall 9011 Carbon Steel Straight Adapter, 1/8 in Male BSPT x 1/4 in Male JIC

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9011-04-02
  • MPN: 9011-04-02
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 9011 Carbon Steel Straight Adapter, Connection Size 1: 1/8 in, Gender 1: Male, Connection Type 1: BSPT x Connection Size 2: 1/4 in, Gender 2: Male, Connection Type 2: JIC

Series      :      9011
Connection Size 1      :      1/8 in
Connection Size 2      :      1/4 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      1/8 in BSPT
Shape      :      Straight
Connection 2      :      1/4 in JIC
Thread Size 1      :      R 1/8-28
Thread Size 2      :      7/16-20
Dimension Standards      :      DIN EN 10226-1, ISO 7-1, ISO 8434-2, SAE J514
Length      :      32.9 mm
Fitting Type      :      Straight Adapter
Hex Size      :      13 mm
Material      :      Carbon Steel
Connection Type 1      :      BSPT
Connection Type 2      :      JIC
