Adaptall 9019-06-L06-12
Send Print
  1. pin-int

Adaptall 9019-06-L06-12

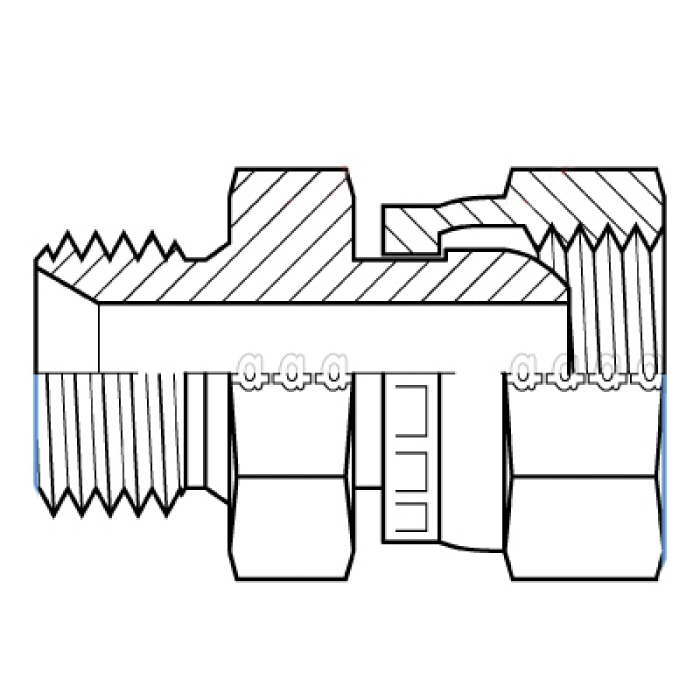

Adaptall 9019 Carbon Steel Straight Adapter, 3/8 in Male BSPP x L06 Female Metric DIN 24° Tube

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9019-06-L06-12
  • MPN: 9019-06-L06-12
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Adaptall 9019 Carbon Steel Straight Adapter, Connection Size 1: 3/8 in, Gender 1: Male, Connection Type 1: BSPP x Connection Size 2: L06, Gender 2: Female, Connection Type 2: Metric DIN 24° Tube

Series      :      9019
Connection Size 1      :      3/8 in
Connection Size 2      :      L06
Gender 1      :      Male
Gender 2      :      Female
Connection 1      :      3/8 in BSPP
Shape      :      Straight
Connection 2      :      6 mm Light
Thread Size 1      :      G 3/8-19
Thread Size 2      :      M12 x 1.5
Dimension Standards      :      ISO 1179, ISO 8434-6, BS 5200, ISO 8434-1, DIN 2353
Length      :      35.5 mm
Fitting Type      :      Straight Adapter
Width      :      24 mm
Hex Size      :      24 x 17.5 mm
Material      :      Carbon Steel
Connection Type 1      :      BSPP
Connection Type 2      :      Metric DIN 24° Tube
