Adaptall 9021-16-12

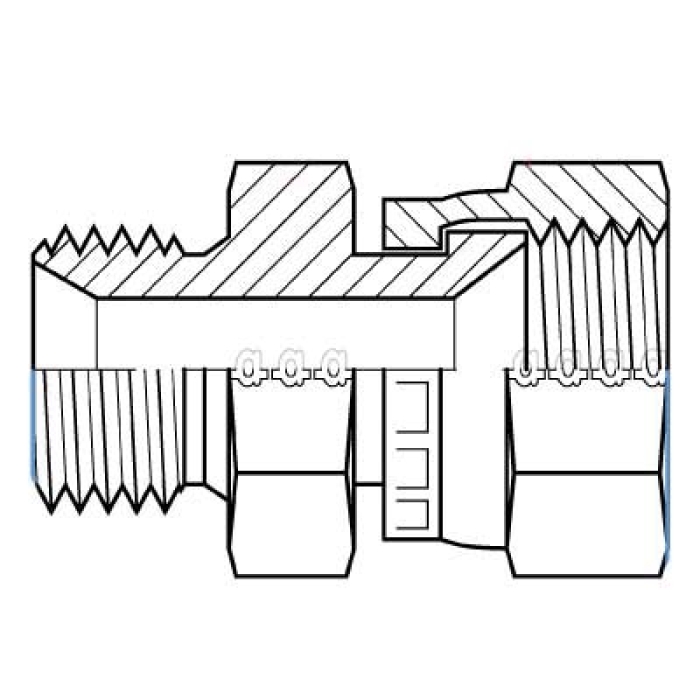

Adaptall 9021 Carbon Steel Straight Adapter, 1 in Male BSPP 60 deg Flare x 3/4 in Female JIC Swivel

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9021-16-12
  • MPN: 9021-16-12
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall Straight Adapter, Series: 9021, Connection Type 1: BSPP 60 deg Flare, Gender 1: Male, Connection Size 1: 1 in, Thread Size 1: G 1-11, Connection Type 2: JIC Swivel, Gender 2: Female, Connection Size 2: 3/4 in, Thread Size 2: 1-1/16-12 UN, Hex Size: 41 x 32 mm, Carbon Steel, 57.5 mm Length, Dimension Standards: BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514

Series      :      9021
Connection Size 1      :      1 in
Connection Size 2      :      3/4 in
Gender 1      :      Male
Gender 2      :      Female
Connection 1      :      1 in BSPP
Shape      :      Straight
Connection 2      :      3/4 in JIC Swivel
Thread Size 1      :      G 1-11
Thread Size 2      :      1-1/16-12 UN
Dimension Standards      :      BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514
Length      :      57.5 mm
Fitting Type      :      Straight Adapter
Hex Size      :      41 x 32 mm
Material      :      Carbon Steel
Connection Type 1      :      BSPP 60 deg Flare
Connection Type 2      :      JIC Swivel
