Adaptall 9022-10-L12-18
Send Print
  1. pin-int

Adaptall 9022-10-L12-18

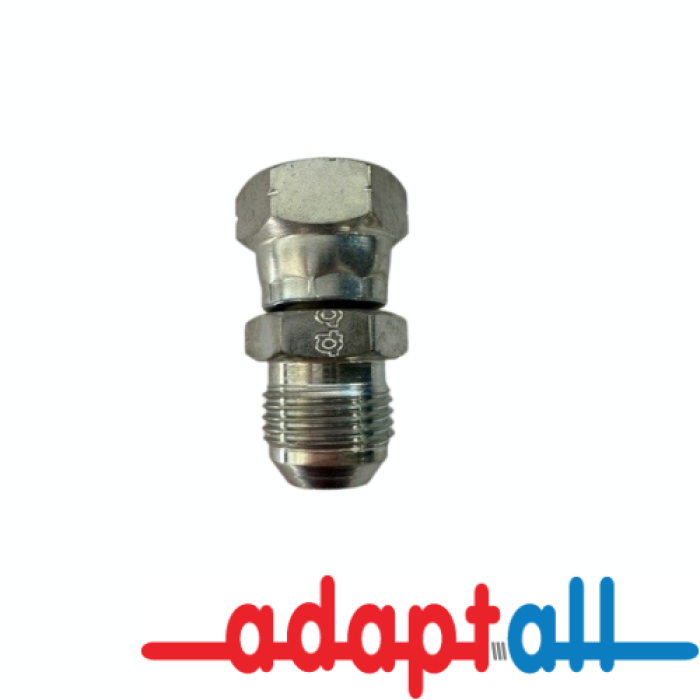

Adaptall 9022 Carbon Steel Straight Adapter, 12 mm Female Metric DIN 60 deg Tube Flare Swivel x 5/8 in Male JIC

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9022-10-L12-18
  • MPN: 9022-10-L12-18
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Adaptall Straight Adapter, Series: 9022, Connection Type 1: Metric DIN 60 deg Tube Flare Swivel, Gender 1: Female, Connection Size 1: 12 mm, Thread Size 1: M18 x 1.5, Connection Type 2: JIC, Gender 2: Male, Connection Size 2: 5/8 in, Thread Size 2: 7/8-14 UNF, Hex Size: 25 x 27 mm, Carbon Steel, 47 mm Length, Dimension Standards: DIN 2353, ISO 8434-1, ISO 8434-2, SAE J514

Series      :      9022
Connection Size 1      :      12 mm
Connection Size 2      :      5/8 in
Gender 1      :      Female
Gender 2      :      Male
Connection 1      :      12 mm Metric Swivel
Shape      :      Straight
Connection 2      :      5/8 in JIC
Thread Size 1      :      M18 x 1.5
Thread Size 2      :      7/8-14 UNF
Dimension Standards      :      DIN 2353, ISO 8434-1, ISO 8434-2, SAE J514
Length      :      47 mm
Fitting Type      :      Straight Adapter
Hex Size      :      25 x 27 mm
Material      :      Carbon Steel
Connection Type 1      :      Metric DIN 60 deg Tube Flare Swivel
Connection Type 2      :      JIC
  • Dual-purpose ball seat
