Adaptall 9022FC-06-16

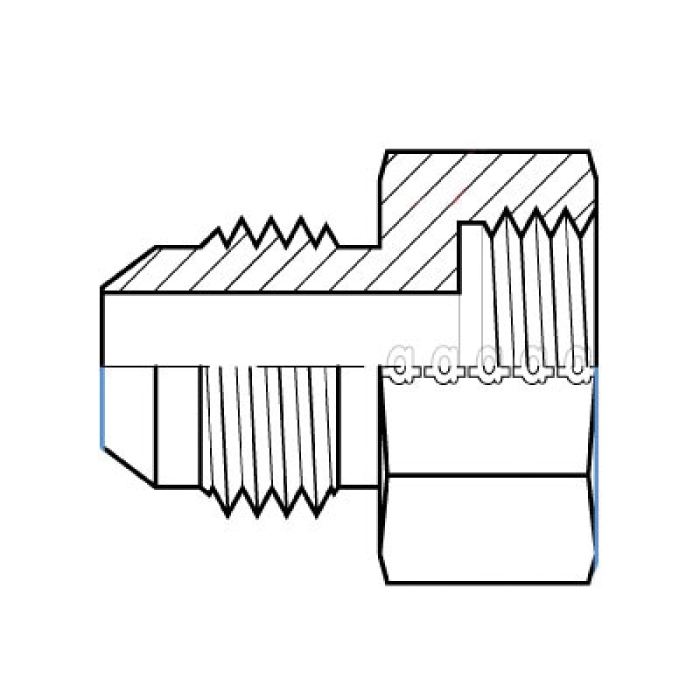

Adaptall 9022FC Carbon Steel Shortened Straight Adapter, 16 mm Female Flat Face Metric x 3/8 in Male JIC

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9022FC-06-16
  • MPN: 9022FC-06-16
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Adaptall Shortened Straight Adapter, Series: 9022FC, Connection Type 1: Flat Face Metric, Gender 1: Female, Connection Size 1: 16 mm, Thread Size 1: M16 x 1.5, Connection Type 2: JIC, Gender 2: Male, Connection Size 2: 3/8 in, Thread Size 2: 9/16-18 UNF, Hex Size: 20.5 mm, Carbon Steel, 23.5 mm Length, Dimension Standards: GB/T 9065.3, ISO 8434-2, SAE J514

Series      :      9022FC
Connection Size 1      :      16 mm
Connection Size 2      :      3/8 in
Gender 1      :      Female
Gender 2      :      Male
Connection 1      :      16 mm Metric
Shape      :      Straight
Connection 2      :      3/8 in JIC
Thread Size 1      :      M16 x 1.5
Thread Size 2      :      9/16-18 UNF
Dimension Standards      :      GB/T 9065.3, ISO 8434-2, SAE J514
Length      :      23.5 mm
Fitting Type      :      Straight Adapter
Hex Size      :      20.5 mm
Material      :      Carbon Steel
Connection Type 1      :      Flat Face Metric
Connection Type 2      :      JIC
