Adaptall 9022FC-04-14
Send Print
  1. pin-int

Adaptall 9022FC-04-14

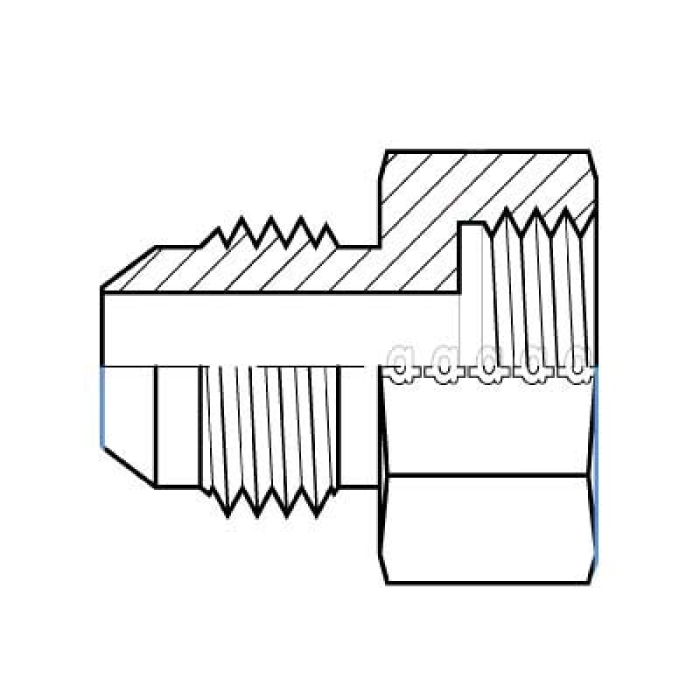

Adaptall 9022FC Carbon Steel Straight Adapter, 1/4 in Male JIC x 14 mm Female ORFS

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9022FC-04-14
  • MPN: 9022FC-04-14
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall Straight Adapter, Series: 9022FC, Connection Type 1: JIC, Gender 1: Male, Connection Size 1: 1/4 in, Thread Size 1: 7/16-20, Connection Type 2: ORFS, Gender 2: Female, Connection Size 2: 14 mm, Thread Size 2: M14 x 1.5, Hex Size: 19 mm, Carbon Steel, 23.6 mm Length, Dimension Standards: GB/T 9065.3, ISO 8434-2, SAE J514

Series      :      9022FC
Connection Size 1      :      1/4 in
Connection Size 2      :      14 mm
Gender 1      :      Male
Gender 2      :      Female
Connection 1      :      1/4 in JIC
Shape      :      Straight
Connection 2      :      14 mm ORFS
Thread Size 1      :      7/16-20
Thread Size 2      :      M14 x 1.5
Dimension Standards      :      GB/T 9065.3, ISO 8434-2, SAE J514
Length      :      23.6 mm
Fitting Type      :      Straight Adapter
Hex Size      :      19 mm
Material      :      Carbon Steel
Connection Type 1      :      JIC
Connection Type 2      :      ORFS
