Adaptall 9023-06-08
Send Print
  1. pin-int

Adaptall 9023-06-08

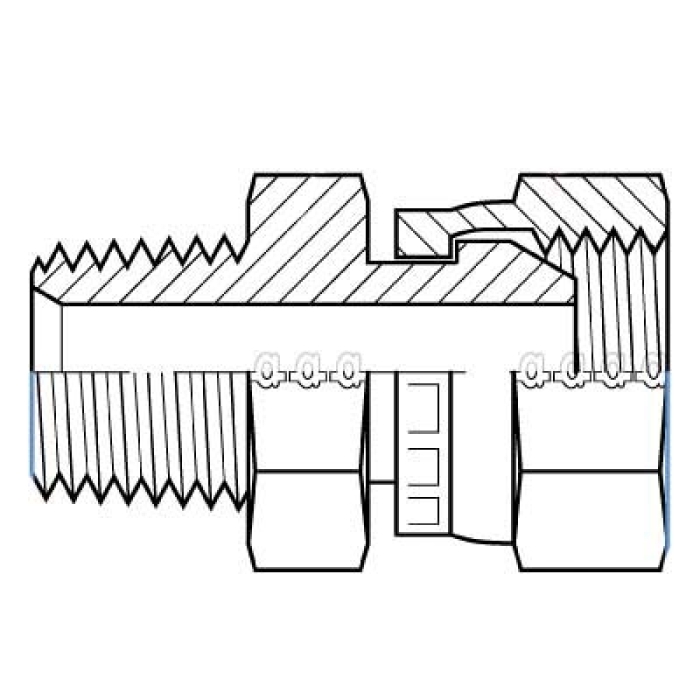

Adaptall 9023 Carbon Steel Straight Adapter, 1/2 in Female BSPP 60 deg Flare Swivel x 3/8 in MNPT

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9023-06-08
  • MPN: 9023-06-08
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall Straight Adapter, Series: 9023, Connection Type 1: BSPP 60 deg Flare Swivel, Gender 1: Female, Connection Size 1: 1/2 in, Thread Size 1: G 1/2-14, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 3/8 in, Thread Size 2: 3/8-18, Hex Size: 22 x 27 mm, Carbon Steel, 45 mm Length, Dimension Standards: ANSI B1.20.3, BS 5200, ISO 1179, ISO 8434-6

Series      :      9023
Connection Size 1      :      1/2 in
Connection Size 2      :      3/8 in
Gender 1      :      Female
Gender 2      :      Male
Connection 1      :      1/2 in BSPP Swivel
Shape      :      Straight
Connection 2      :      3/8 in NPT
Thread Size 1      :      G 1/2-14
Thread Size 2      :      3/8-18
Dimension Standards      :      ANSI B1.20.3, BS 5200, ISO 1179, ISO 8434-6
Length      :      45 mm
Fitting Type      :      Straight Adapter
Hex Size      :      22 x 27 mm
Material      :      Carbon Steel
Connection Type 1      :      BSPP 60 deg Flare Swivel
Connection Type 2      :      NPT
