Adaptall 9035S-06-04 ADC 9035S-06-04 | Tipco Technologies
Adaptall 9035S-06-04
Send Print
  1. pin-int

Adaptall 9035S-06-04

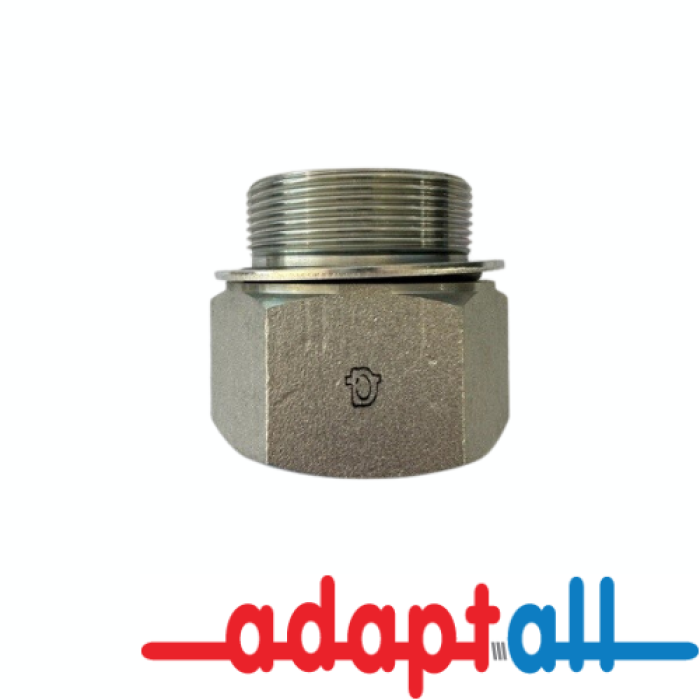

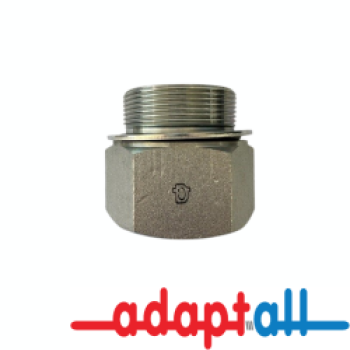

Adaptall 9035S Carbon Steel Straight Adapter, 3/8 in Male BSPP x 1/4 in Female NPT

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9035S-06-04
  • MPN: 9035S-06-04
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Adaptall 9035S Carbon Steel Straight Adapter, Connection Size 1: 3/8 in, Gender 1: Male, Connection Type 1: BSPP x Connection Size 2: 1/4 in, Gender 2: Female, Connection Type 2: NPT

Series      :      9035S
Connection Size 1      :      3/8 in
Connection Size 2      :      1/4 in
Gender 1      :      Male
Gender 2      :      Female
Connection 1      :      3/8 in BSPP
Shape      :      Straight
Connection 2      :      1/4 in NPT
Thread Size 1      :      G 3/8-19
Thread Size 2      :      1/4-18
Dimension Standards      :      BS 5200, ISO 1179, ISO 8434-6, ANSI B1.20.3
Length      :      34.1 mm
Fitting Type      :      Straight Adapter
Hex Size      :      22 mm
Material      :      Carbon Steel
Connection Type 1      :      BSPP
Connection Type 2      :      NPT
