Adaptall 9037-08-08

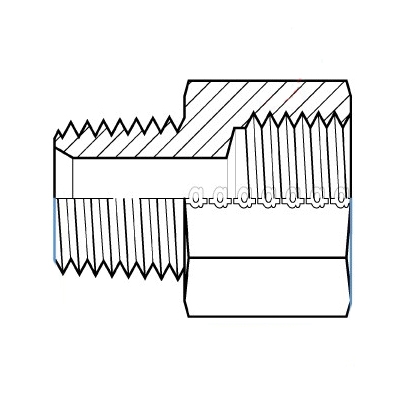

Adaptall 9037 Carbon Steel Straight Adapter, 1/2 in Female BSPP x 1/2 in Male NPT

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9037-08-08
  • MPN: 9037-08-08
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 9037 Carbon Steel Straight Adapter, Connection Size 1: 1/2 in, Gender 1: Female, Connection Type 1: BSPP x Connection Size 2: 1/2 in, Gender 2: Male, Connection Type 2: NPT

Series      :      9037
Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Gender 1      :      Female
Gender 2      :      Male
Connection 1      :      1/2 in BSPP
Shape      :      Straight
Connection 2      :      1/2 in NPT
Thread Size 1      :      G 1/2-14
Thread Size 2      :      1/2-14
Dimension Standards      :      ANSI B1.20.3, BS 5200, ISO 1179, ISO 8434-6
Length      :      44.6 mm
Fitting Type      :      Straight Adapter
Hex Size      :      28.5 mm
Material      :      Carbon Steel
Connection Type 1      :      BSPP
Connection Type 2      :      NPT
