Adaptall 9042-04-04

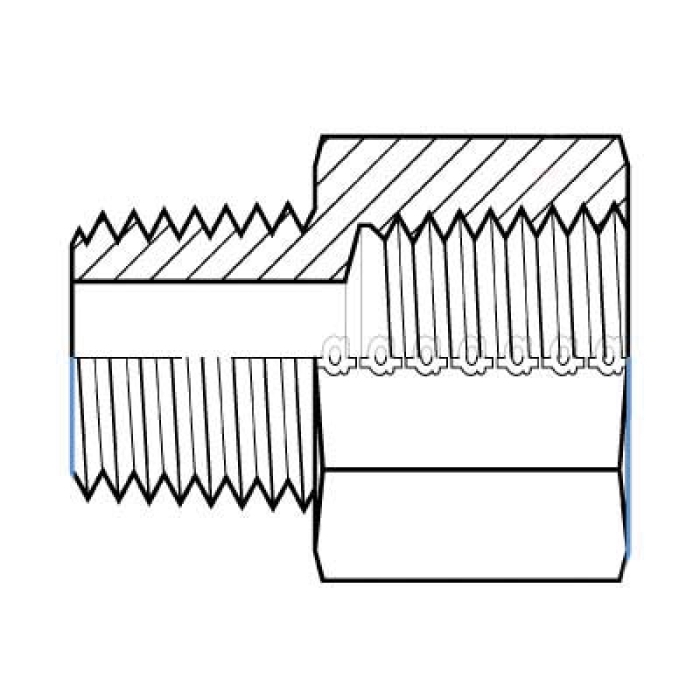

Adaptall 9042 Carbon Steel Straight Adapter, 1/4 in Male BSPT x 1/4 in FNPT

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9042-04-04
  • MPN: 9042-04-04
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall Straight Adapter, Series: 9042, Connection Type 1: BSPT, Gender 1: Male, Connection Size 1: 1/4 in, Thread Size 1: R 1/4-19, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 19 mm, Carbon Steel, 37.3 mm Length, Dimension Standards: ANSI B1.20.3, DIN EN 10226-1, ISO 7-1

Series      :      9042
Connection Size 1      :      1/4 in
Connection Size 2      :      1/4 in
Gender 1      :      Male
Gender 2      :      Female
Connection 1      :      1/4 in BSPT
Shape      :      Straight
Connection 2      :      1/4 in NPT
Thread Size 1      :      R 1/4-19
Thread Size 2      :      1/4-18
Dimension Standards      :      ANSI B1.20.3, DIN EN 10226-1, ISO 7-1
Length      :      37.3 mm
Fitting Type      :      Straight Adapter
Hex Size      :      19 mm
Material      :      Carbon Steel
Connection Type 1      :      BSPT
Connection Type 2      :      NPT
