Adaptall 9067-06-12 ADC 9067-06-12 | Tipco Technologies
Adaptall 9067-06-12
Send Print
  1. pin-int

Adaptall 9067-06-12

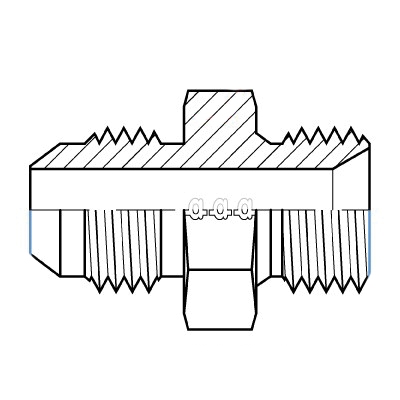

Adaptall 9067 Carbon Steel Straight Adapter, 12 mm Male Metric DIN 60° Flare x 3/8 in Male JIC

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9067-06-12
  • MPN: 9067-06-12
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 9067 Carbon Steel Straight Adapter, Connection Size 1: 12 mm, Gender 1: Male, Connection Type 1: Metric DIN 60° Flare x Connection Size 2: 3/8 in, Gender 2: Male, Connection Type 2: JIC

Series      :      9067
Connection Size 1      :      12 mm
Connection Size 2      :      3/8 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      12 mm Metric 60
Shape      :      Straight
Connection 2      :      3/8 in JIC
Thread Size 1      :      M12 x 1.5
Thread Size 2      :      9/16-18
Dimension Standards      :      DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514
Length      :      32.6 mm
Fitting Type      :      Straight Adapter
Hex Size      :      17.5 mm
Material      :      Carbon Steel
Connection Type 1      :      Metric DIN 60° Flare
Connection Type 2      :      JIC
