Adaptall 9197-16-S25-36
Send Print
  1. pin-int

Adaptall 9197-16-S25-36

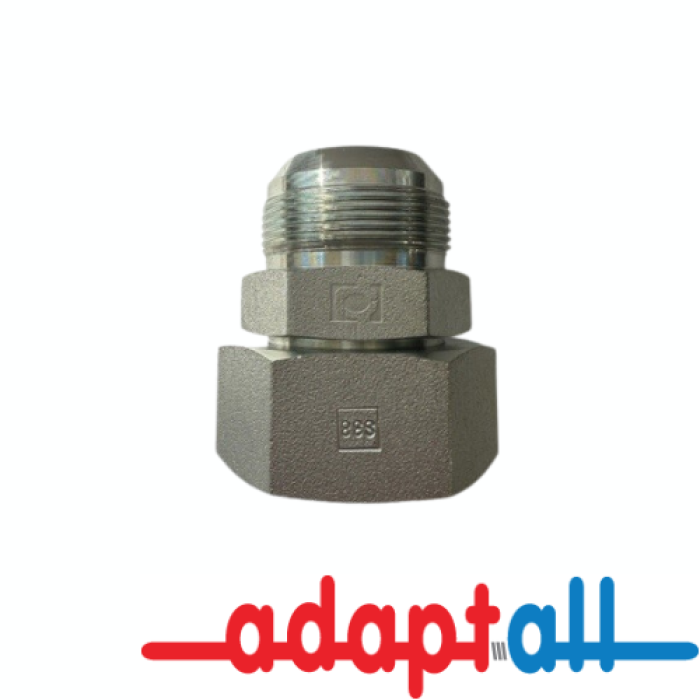

Adaptall 9197 Carbon Steel Straight Adapter, S25 Female Metric DIN 24° Tube x 1 in Male JIC

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9197-16-S25-36
  • MPN: 9197-16-S25-36
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Adaptall 9197 Carbon Steel Straight Adapter, Connection Size 1: S25, Gender 1: Female, Connection Type 1: Metric DIN 24° Tube x Connection Size 2: 1 in, Gender 2: Male, Connection Type 2: JIC

Series      :      9197
Connection Size 1      :      S25
Connection Size 2      :      1 in
Gender 1      :      Female
Gender 2      :      Male
Connection 1      :      25 mm Heavy
Shape      :      Straight
Connection 2      :      1 in JIC
Thread Size 1      :      M36 x 2
Thread Size 2      :      1-5/16-12
Dimension Standards      :      SAE J514, ISO 8434-2, ISO 8434-1, DIN 2353
Length      :      67.9 mm
Fitting Type      :      Straight Adapter
Hex Size      :      36 x 46 mm
Material      :      Carbon Steel
Connection Type 1      :      Metric DIN 24° Tube
Connection Type 2      :      JIC
