Adaptall 9220-06-06
Send Print
  1. pin-int

Adaptall 9220-06-06

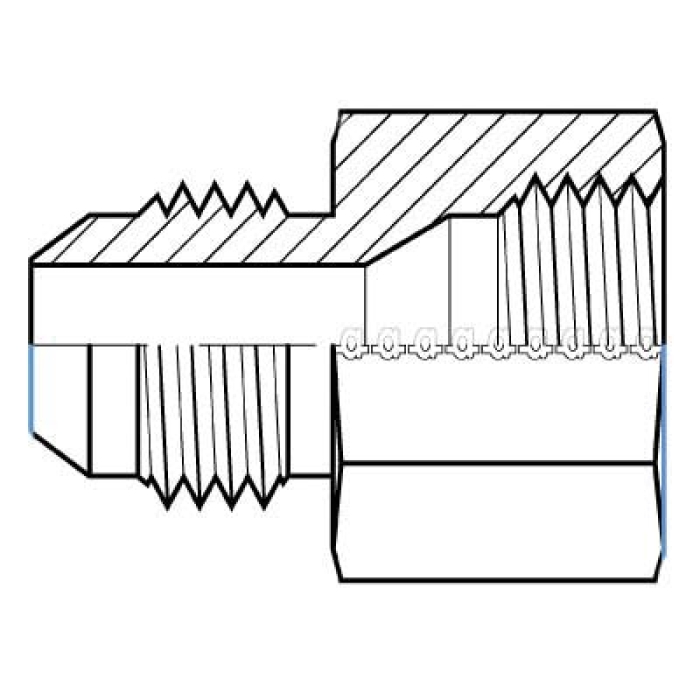

Adaptall 9220 Carbon Steel Straight Adapter with Washer and O-Ring, 3/8 in Male JIC x 3/8 in Female JIS

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9220-06-06
  • MPN: 9220-06-06
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall Straight Adapter with Washer and O-Ring, Series: 9220, Connection Type 1: JIC, Gender 1: Male, Connection Size 1: 3/8 in, Thread Size 1: 9/16-18 UNF, Connection Type 2: JIS, Gender 2: Female, Connection Size 2: 3/8 in, Thread Size 2: G 3/8-19, Hex Size: 24 mm, Carbon Steel, 36.3 mm Length, Dimension Standards: ISO 8434-2, JIS B 0202, SAE J514

Series      :      9220
Connection Size 1      :      3/8 in
Connection Size 2      :      3/8 in
Gender 1      :      Male
Gender 2      :      Female
Connection 1      :      3/8 in JIC
Shape      :      Straight
Connection 2      :      3/8 in JIS
Thread Size 1      :      9/16-18 UNF
Thread Size 2      :      G 3/8-19
Dimension Standards      :      ISO 8434-2, JIS B 0202, SAE J514
Length      :      36.3 mm
Fitting Type      :      Straight Adapter
Hex Size      :      24 mm
Material      :      Carbon Steel
Connection Type 1      :      JIC
Connection Type 2      :      JIS
