Adaptall 9277-06-04
Send Print
  1. pin-int

Adaptall 9277-06-04

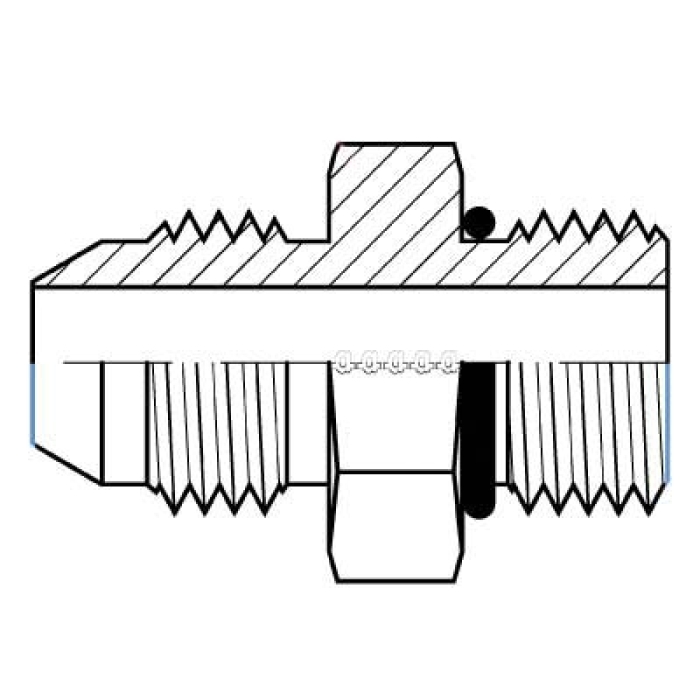

Adaptall 9277 Carbon Steel Straight Adapter, 3/8 in Male JIS x 1/4 in Male SAE ORB

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9277-06-04
  • MPN: 9277-06-04
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Adaptall Straight Adapter, Series: 9277, Connection Type 1: JIS, Gender 1: Male, Connection Size 1: 3/8 in, Thread Size 1: G 3/8-19, Connection Type 2: SAE ORB, Gender 2: Male, Connection Size 2: 1/4 in, Thread Size 2: 7/16-20 UNF, Hex Size: 17 mm, Carbon Steel, 33.2 mm Length, Dimension Standards: ISO 11926, JIS B 0202, SAE J1926

Series      :      9277
Connection Size 1      :      3/8 in
Connection Size 2      :      1/4 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      3/8 in JIS
Shape      :      Straight
Connection 2      :      1/4 in ORB
Thread Size 1      :      G 3/8-19
Thread Size 2      :      7/16-20 UNF
Dimension Standards      :      ISO 11926, JIS B 0202, SAE J1926
Length      :      33.2 mm
Fitting Type      :      Straight Adapter
Hex Size      :      17 mm
Material      :      Carbon Steel
Connection Type 1      :      JIS
Connection Type 2      :      SAE ORB
