Adaptall 9605-04-08X1.0 ADC 9605-04-08X1.0 | Tipco Technologies
Adaptall 9605-04-08X1.0
Send Print
  1. pin-int

Adaptall 9605-04-08X1.0

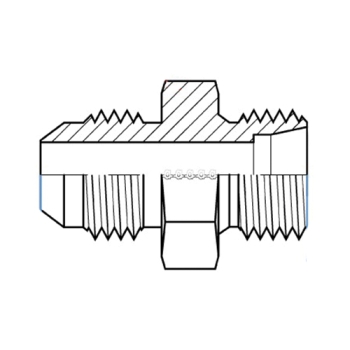

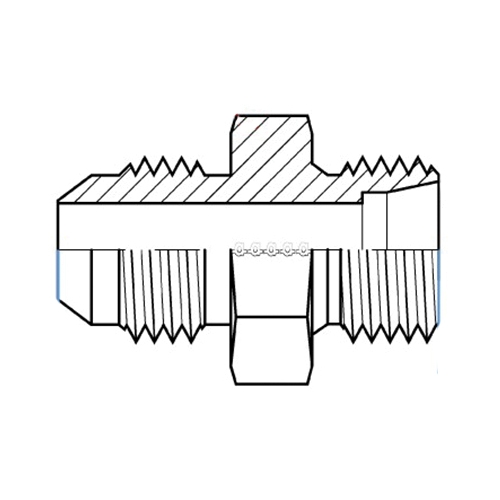

Adaptall 9605 Carbon Steel Straight Adapter, 8 mm Male Metric Port x 1/4 in Male JIC

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9605-04-08X1.0
  • MPN: 9605-04-08X1.0
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Adaptall 9605 Carbon Steel Straight Adapter, Connection Size 1: 8 mm, Gender 1: Male, Connection Type 1: Metric Port x Connection Size 2: 1/4 in, Gender 2: Male, Connection Type 2: JIC

Series      :      9605
Connection Size 1      :      8 mm
Connection Size 2      :      1/4 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      8 mm
Shape      :      Straight
Connection 2      :      1/4 in JIC
Thread Size 1      :      M8 x 1
Thread Size 2      :      7/16-20
Dimension Standards      :      DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514
Length      :      27.4 mm
Fitting Type      :      Straight Adapter
Hex Size      :      13 mm
Material      :      Carbon Steel
Connection Type 1      :      Metric Port
Connection Type 2      :      JIC
