Adaptall 9605S-16-L28-36
Send Print
  1. pin-int

Adaptall 9605S-16-L28-36

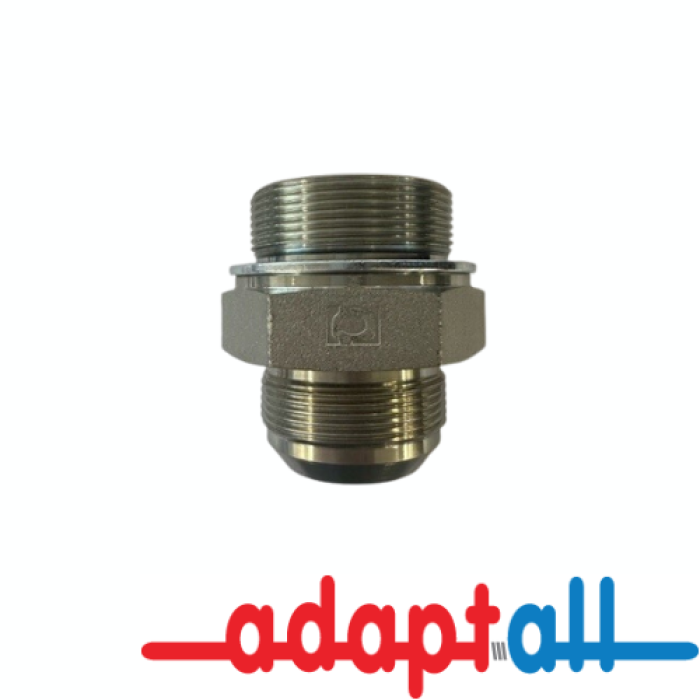

Adaptall 9605S Carbon Steel Straight Adapter, L28 Male Metric DIN 24° Tube x 1 in Male JIC

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9605S-16-L28-36
  • MPN: 9605S-16-L28-36
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 9605S Carbon Steel Straight Adapter, Connection Size 1: L28, Gender 1: Male, Connection Type 1: Metric DIN 24° Tube x Connection Size 2: 1 in, Gender 2: Male, Connection Type 2: JIC

Series      :      9605S
Connection Size 1      :      L28
Connection Size 2      :      1 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      28 mm Light
Shape      :      Straight
Connection 2      :      1 in JIC
Thread Size 1      :      M36 x 2
Thread Size 2      :      1-5/16-12
Dimension Standards      :      DIN 2353, ISO 8434-2, ISO 8434-1, SAE J514
Length      :      53.3 mm
Fitting Type      :      Straight Adapter
Hex Size      :      41 mm
Material      :      Carbon Steel
Connection Type 1      :      Metric DIN 24° Tube
Connection Type 2      :      JIC
