Adaptall 9605S-04-LL08-12
Send Print
  1. pin-int

Adaptall 9605S-04-LL08-12

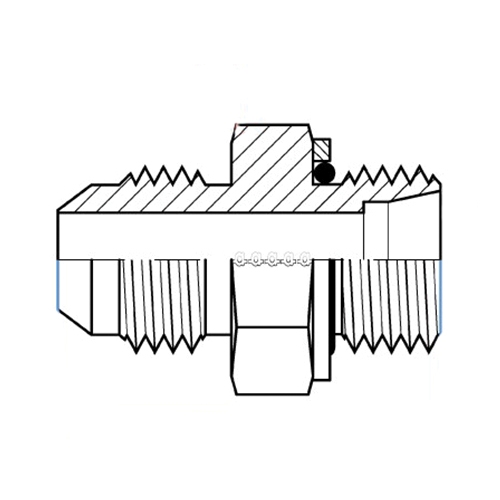

Adaptall 9605S Carbon Steel Straight Adapter, LL08 Male Metric DIN 24° Tube x 1/4 in Male JIC

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9605S-04-LL08-12
  • MPN: 9605S-04-LL08-12
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Adaptall 9605S Carbon Steel Straight Adapter, Connection Size 1: LL08, Gender 1: Male, Connection Type 1: Metric DIN 24° Tube x Connection Size 2: 1/4 in, Gender 2: Male, Connection Type 2: JIC

Series      :      9605S
Connection Size 1      :      LL08
Connection Size 2      :      1/4 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      8 mm Extra Light
Shape      :      Straight
Connection 2      :      1/4 in JIC
Thread Size 1      :      M12 x 1
Thread Size 2      :      7/16-20
Dimension Standards      :      DIN 2353, ISO 8434-2, ISO 8434-1, SAE J514
Length      :      32-1/2 mm
Fitting Type      :      Straight Adapter
Hex Size      :      17 mm
Material      :      Carbon Steel
Connection Type 1      :      Metric DIN 24° Tube
Connection Type 2      :      JIC
