Adaptall 9606-04-S10-18
Send Print
  1. pin-int

Adaptall 9606-04-S10-18

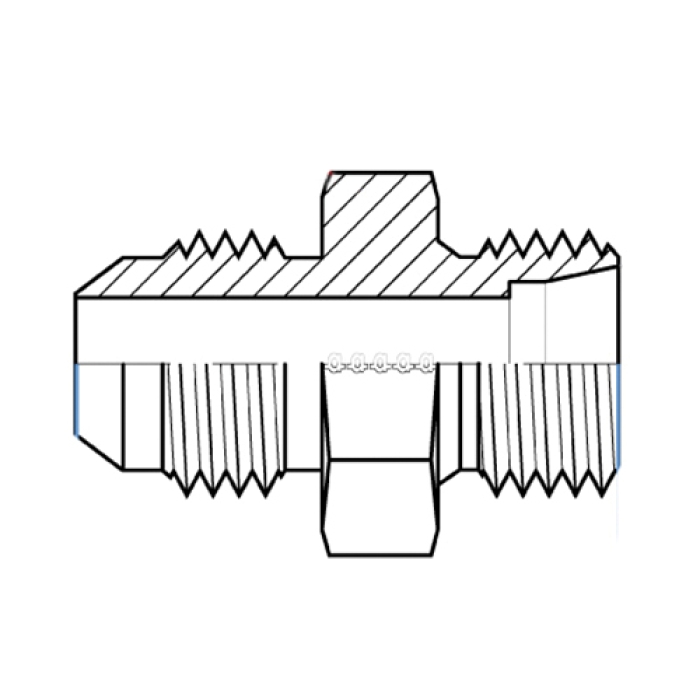

Adaptall 9606 Carbon Steel Straight Adapter, 10 mm Male Metric Port x 1/4 in Male JIC

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9606-04-S10-18
  • MPN: 9606-04-S10-18
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 9606 Carbon Steel Straight Adapter, Connection Size 1: 10 mm, Gender 1: Male, Connection Type 1: Metric Port x Connection Size 2: 1/4 in, Gender 2: Male, Connection Type 2: JIC

Series      :      9606
Connection Size 1      :      10 mm
Connection Size 2      :      1/4 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      10 mm Heavy
Shape      :      Straight
Connection 2      :      1/4 in JIC
Thread Size 1      :      M18 x 1.5
Thread Size 2      :      7/16-20
Dimension Standards      :      SAE J514, ISO 8434-2, ISO 8434-1, DIN 2353
Length      :      35.6 mm
Fitting Type      :      Straight Adapter
Hex Size      :      24 mm
Material      :      Carbon Steel
Connection Type 1      :      Metric Port
Connection Type 2      :      JIC
