Adaptall 9606S-06-S08-16

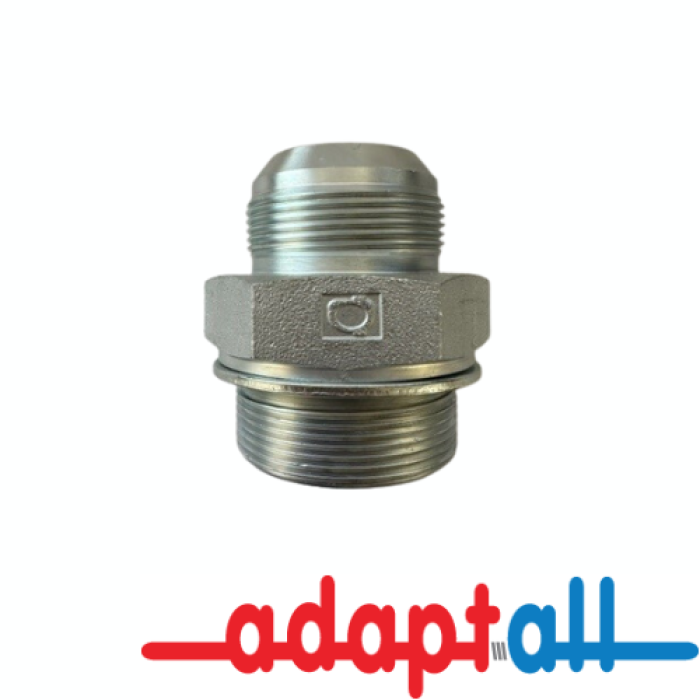

Adaptall 9606S Carbon Steel Straight Adapter, S08 Male Metric DIN 24° Tube x 3/8 in Male JIC

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9606S-06-S08-16
  • MPN: 9606S-06-S08-16
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 9606S Carbon Steel Straight Adapter, Connection Size 1: S08 , Gender 1: Male, Connection Type 1: Metric DIN 24° Tube x Connection Size 2: 3/8 in, Gender 2: Male, Connection Type 2: JIC

Series      :      9606S
Connection Size 1      :      S08
Connection Size 2      :      3/8 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      8 mm Heavy
Shape      :      Straight
Connection 2      :      3/8 in JIC
Thread Size 1      :      M16 x 1.5
Thread Size 2      :      9/16-18
Dimension Standards      :      DIN 2353, ISO 8434-1, ISO 8434-2, SAE J514
Length      :      34.9 mm
Fitting Type      :      Straight Adapter
Hex Size      :      22 mm
Material      :      Carbon Steel
Connection Type 1      :      Metric DIN 24° Tube
Connection Type 2      :      JIC
  • Comes with washer and o-ring seal
